Specifications

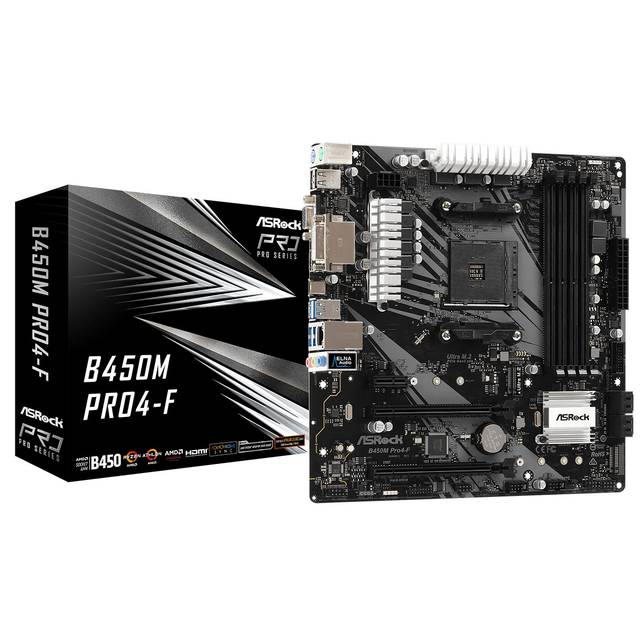

• Mfr Part Number: B450M PRO4-F
• CPU: Socket AM4
  • Digi Power design
  • 9 Power Phase design
• Chipset: AMD Promontory B450
• Memory:
  • 4x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Pinnacle Ridge))
  • 4x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Summit Ridge))
  • 4x DDR4-3200+(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Raven Ridge))
• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 3x PCI-Express 2.0 x16 Slots (runs at x4), 1x PCI Express 2.0 x1 Slot
• Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology
• Storage:
  • SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug
  • M.2: 1x Ultra M.2 Port, supports M Key type 2242/ 2260/ 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU); 1x M.2 Port, supports M Key type 2230/ 2242/ 2260/ 2280 M.2 SATA3 6.0 Gb/s module
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Realtek RTL8111GR PCIE x1 Gigabit Ethernet Controller
• Ports: 7x USB 3.1 Gen 1 Ports (1 Type-C rear, 4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port w/ LED, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: MicroATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm
