Specifications

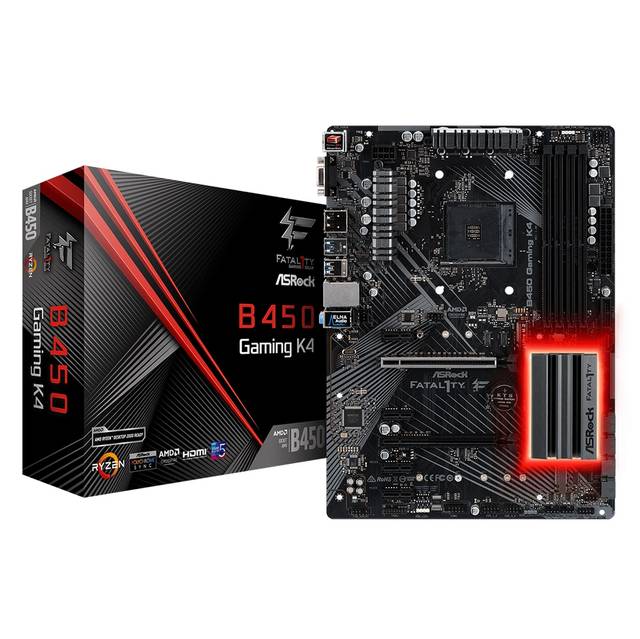

• Mfr Part Number: B450 GAMING K4
• CPU: Socket AM4
  • Digi Power design
  • 9 Power Phase design
  • Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
• Chipset: AMD Promontory B450
• Memory:
  • 4x DDR4-3200+(OC)/ 2933/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Pinnacle Ridge))
  • 4x DDR4-3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Summit Ridge))
  • 4x DDR4- 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB (AMD Ryzen series CPUs (Raven Ridge))
• Slots: 6x PCI Express 3.0 x16 Slots (two run at x8; two run at x4; one runs at x2); 4x PCI Express 2.0 x1 Slots

• Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology

• Storage:
  • SATA: 4x SATA3 Ports, Support RAID 0, 1, 10, NCQ, AHCI and Hot Plug; 2x SATA3 Ports by ASMedia ASM1061, Support NCQ, AHCI and Hot Plug

  • M.2: 1x Ultra M.2 Port (M Key), supports type 2242/ 2260/ 2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge), 1x M.2 Port (M Key), supports type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s)

• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Realtek RTL8111H PCIE x1 Gigabit Ethernet Controller

• Ports: 2x USB 3.1 Gen 2 Ports (1 Type-A rear, 1 Type-C rear), 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port with LED, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
• Form Factor: ATX, 12.0 x 8.8 inch / 30.5 x 22.4 cm
