Specifications

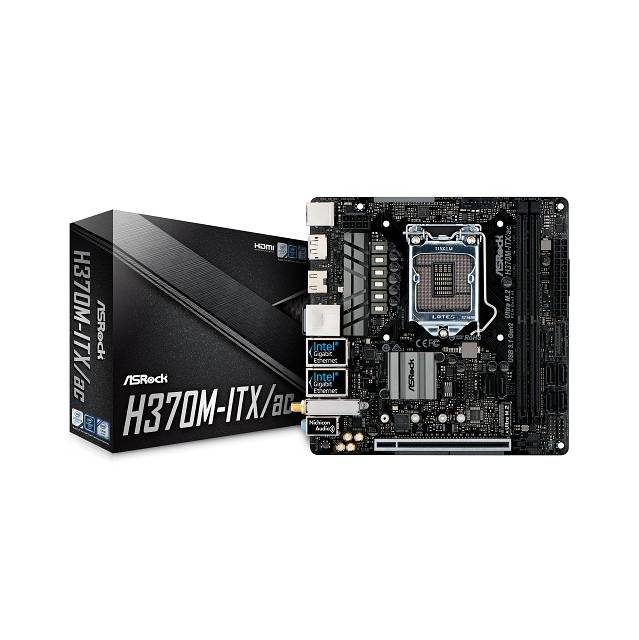

• Mfr Part Number: H370M-ITX/AC
• CPU: LGA1151
  • Supports 8th Generation Intel Core Processors
  • Supports CPU up to 95W
  • Digi Power design
  • 6 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
• Chipset: Intel H370
• Memory: 2x DDR4-2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 1x Vertical M.2 Socket (Key E)
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10, NCQ, AHCI and Hot Plug
  • M.2: 1x Ultra M.2 Port, Supports M Key Type 2230/ 2242/ 2260/ 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Intel I211AT and Giga PHY Intel I219V Gigabit Ethernet Controllers; IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2 / 3.0 + High speed class II
• Ports: 4x USB 3.1 Gen2 Ports (Type-A rear), 4x USB 3.1 Gen1 Ports (2 rear, 2 via headers), 4x USB 2.0 Ports (2 rear, 2 via header), 1x PS/2 Mouse/Keyboard Port, 2x HDMI Ports, 1 x DisplayPort, 2x Antenna Ports, 2x RJ45 LAN Ports w/ LED, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Power Connector, 1x 8pin 12V Power Connector
• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
