Specifications

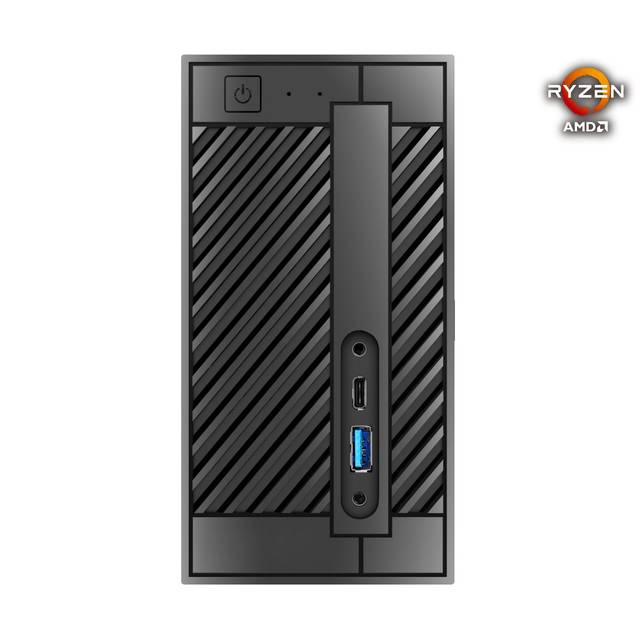

• Mfr Part Number: NT-DESKMINI A300W

• No CPU, No Memory, No HDD, No ODD, No OS

• CPU: Supports AMD AM4 Socket CPUs (Raven Ridge, Bristol Ridge, up to 65W)

• Chipset: AMD A300 Promontory

• Memory: Supports 2x DDR4-2933/ 2400 MHz SODIMM Slots, non-ECC, Max Capacity of 32GB

• Storage:
  • SATA: 2x SATA3 Ports, Support RAID 0, 1

  • M.2: 2x M.2 Ports, support type Type 2280 PCIe Gen3 x4

• Hard Drive: N/A

• Audio: Realtek ALC233 Audio CODEC

• Video: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU, Integrated AMD Radeon R-Series Graphics in A-series APU

• LAN: Realtek RTL8111H Gigabit Ethernet Controller; 1x M.2 (key E 2230) Slot for Wi-Fi + BT Module

• Interface: 3x USB 3.1 Gen 1 Ports (1 Type-A rear, 1 Type-A front, 1 Type-C front), 1x USB 2.0 Port (Type-A rear), 1x VGA Port, 1x HDMI Port, 1x DisplayPort, 1x RJ45 LAN Port, 1x Headphone w/ MIC Jack, 1x MIC-In

• Power Supply: 120W/ 19V Adapter

• Certificatioan: CE, FCC, TPM Software

• Dimensions:

  • Motherboard: 5.8 x 5.4 inch (Mini-STX)

  • Barebones: 155.0 x 155.0 x 80.0 mm (1.92L)

• Operating System: Microsoft Windows 10 64-bit compliant
