Specifications

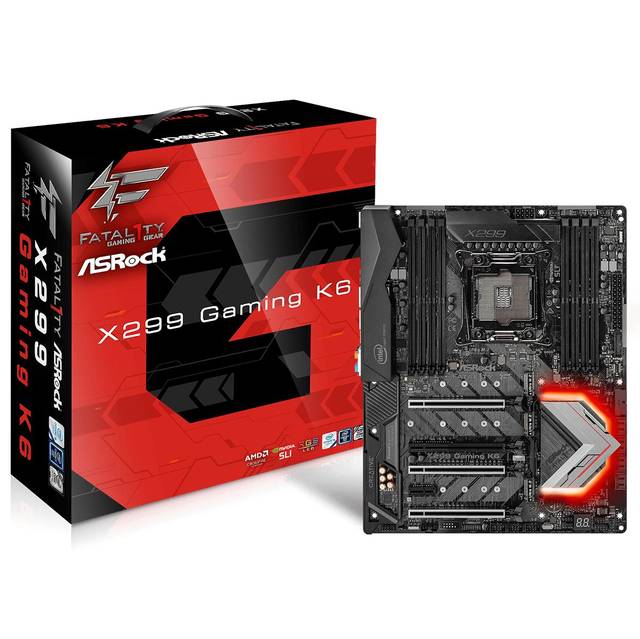

• Mfr Part Number: X299 GAMING K6
• CPU: LGA2066
  • Supports Intel Core X-Series Processor Family
  • Digi Power design
  • 11 Power Phase design
  • Supports Intel Turbo Boost Max Technology 3.0
  • Supports ASRock Hyper BCLK Engine III
• Chipset: Intel X299
• Memory: 8x DDR4 - 4400+(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Quad Channel, Non-ECC, Unbuffered, Max Capacity of 128GB
• Slots: 4x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x1 Slot
• Multi-Graphics: Supports AMD Quad CrossFireX, 3-Way CrossFireX, CrossFireX and NVIDIA Quad SLI, 3-Way SLI, SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports
  • M.2: 3x Ultra M.2 Ports, one supports type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s), two supports  type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219V and Intel I211AT Gigabit Ethernet Controllers
• Ports: 2x USB 3.1 Ports (1 Type-A rear, 1 Type-C rear), 8x USB 3.0 Ports (4 rear, 4 via headers), 10x USB 2.0 Ports (4 rear, 6 via headers), 1x PS/2 Mouse/Keyboard Port, 1x Optical SPDIF Out Port, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
• Form Factor: ATX, 12.0 x 9.6 inch / 30.5 x 24.4 cm
