Specifications

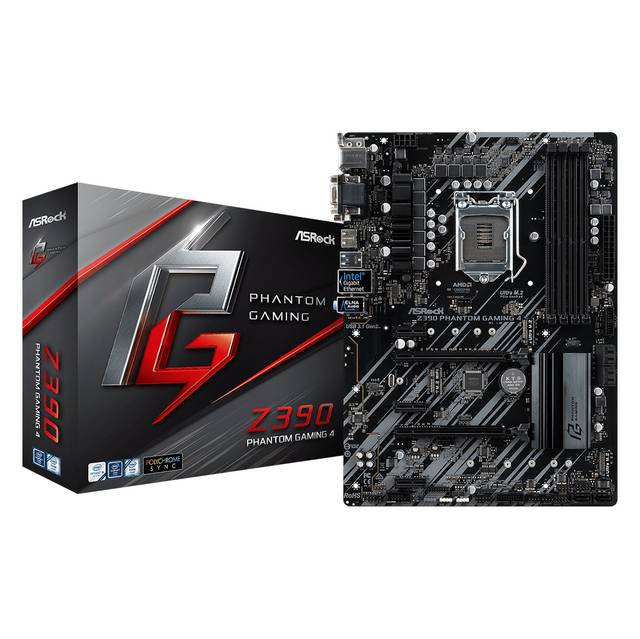

• Mfr Part Number: Z390 PHANTOM GAMING 4
• CPU: LGA1151
  • Supports 9th and 8th Generation Intel Core Processors
  • Digi Power design
  • 10 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Intel K-Series unlocked CPUs
  • Supports ASRock BCLK Full-range Overclocking
• Chipset: Intel Z390
• Memory: 4x DDR4-4300+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB
• Slots: 2x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x16/x4), 3x PCI-Express 3.0 x1 Slots (Flexible PCIe)
• Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology

• Storage:
  • SATA: 6x SATA3 Ports Support RAID 0, 1, 5, 10
  • M.2: 2x Ultra M.2 Ports (M Key), one supports type 2230/ 2242/ 2260/ 2280 M.2 SATA3 and M.2 PCI-Express 3.0 x4 (32 Gb/s), one supports type 2230/ 2242/ 2260/ 2280/22110 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s)

• Audio: Realtek ALC892 7.1-Channel High Definition Audio CODEC
• LAN: Giga PHY Intel I219V Gigabit Ethernet Controller

• Ports: 2x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear), 6x USB 3.1 Gen1 Ports (2 rear, 4 via headers), 5x USB 2.0 Ports (2 rear, 3 via headers), 1x PS/2 Mouse/Keyboard Port, 1x VGA Port, 1x DVI-D Port, 1x HDMI Port, 1x Antenna Port, 1x RJ45 LAN Port with LED, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector
• Form Factor: ATX, 12.0 x 8.8 inch / 30.5 x 22.4 cm
