Specifications

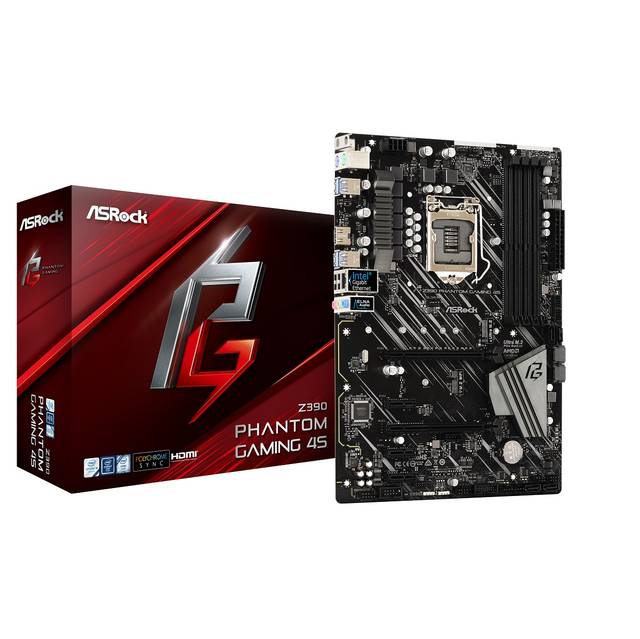

• Mfr Part Number: Z390 PHANTOM GAMING 4S

• CPU: LGA1151
  • Supports 9th and 8th Generation Intel Core Processors
  • Digi Power design
  • 8 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Intel K-Series unlocked CPUs

  • Supports ASRock BCLK Full-range Overclocking

• Chipset: Intel Z390

• Memory: 4x DDR4-4300+(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Dual Channel, ECC, Non-ECC, Unbuffered, Max Capacity of 128GB

• Slots: 2x PCI-Express 3.0 x16 Slots (run single at x16 or dual at x16/x4), 3x PCI-Express 3.0 x1 Slots (Flexible PCIe)

• Multi-Graphics: Supports AMD Quad CrossFireX, CrossFireX Technology

• Storage:
  • SATA: 6x SATA3 Ports Support RAID 0, 1, 5, 10, Intel Rapid Storage Technology 16, NCQ, AHCI and Hot Plug

  • M.2: 1x Ultra M.2 Ports (M Key), supports type 2230/ 2242/ 2260/ 2280/ 22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)

• Audio: Realtek ALC1200 7.1-Channel High Definition Audio CODEC

• LAN: Giga PHY Intel I219V Gigabit Ethernet Controller

• Ports: 8x USB 3.2 Gen 1 Ports (4 rear, 4 via headers), 5x USB 2.0 Ports (2 rear, 3 via headers), 1x PS/2 Mouse Port, 1x PS/2 Keyboard Port, 1x HDMI Port, 1x Antenna Bracket, 1x RJ45 LAN Port with LED, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector

• Form Factor: ATX, 12.0 x 8.4 inch / 30.5 x 21.3 cm
