Specifications

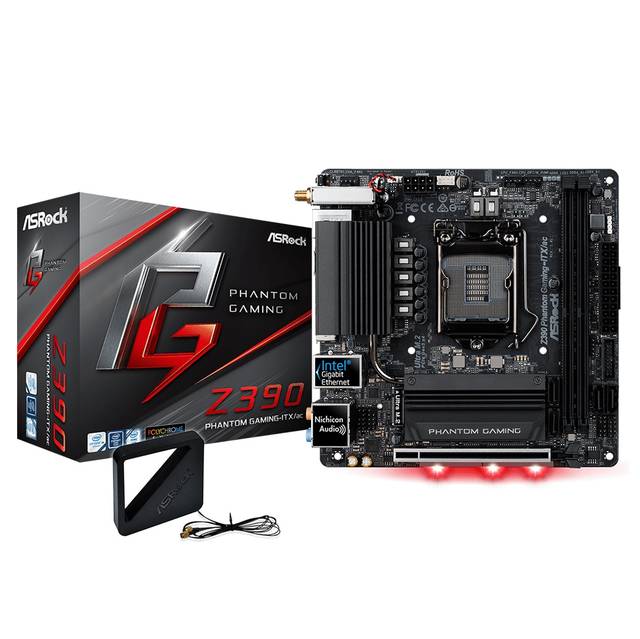

• Mfr Part Number: Z390 PHANTOM GAMING-ITX/AC
• CPU: LGA1151
  • Supports 9th and 8th Generation Intel Core Processors
  • Digi Power design
  • 7 Power Phase design
  • Supports Intel Turbo Boost 2.0 Technology
  • Supports Intel K-Series unlocked CPUs
  • Supports ASRock BCLK Full-range Overclocking
• Chipset: Intel Z390
• Memory: 2x DDR4-4500+(OC)/ 4333(OC)/ 4266(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3200(OC)/ 2933(OC)/ 2800(OC)/ 2666/ 2400/ 2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot
• Storage:
  • SATA: 4x SATA3 Ports Support RAID 0, 1, 5, 10
  • M.2: 2x Ultra M.2 Ports (M Key), one supports type 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s), one supports type 2260/ 2280 M.2 SATA3 & M.2 PCI-Express 3.0 x4 (32 Gb/s)
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC

• LAN: Giga PHY Intel I219V Gigabit Ethernet Controller; Dual-Band IEEE 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 5.0 + High speed class II
• Ports: 4x USB 3.1 Gen 2 Ports (Type-A rear), 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 2x USB 2.0 Ports (via header), 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x DisplayPort, 1x Intel Thunderbolt 3 (Compatible with USB 3.1 Gen2 and USB-C Display), 1x Optical SPDIF Out Port, 2x Antenna Ports, 1x RJ45 LAN Port with LED, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Power Connector, 1x 8-pin 12V Power Connector

• Form Factor: Mini-ITX, 6.7 x 6.7 inch / 17.0 x 17.0 cm
