Specifications

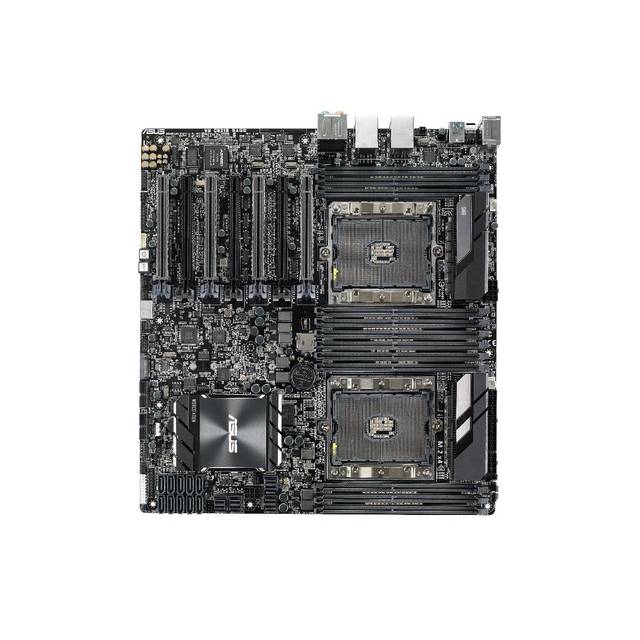

• Mfr Part Number: WS C621E SAGE(BMC)
• CPU: Dual Socket P LGA 3647
  • Supports Intel Xeon Scalable Processors (205W)
• Chipset: Intel C621
• Memory: 12x DDR4-2666/2400 MHz DIMM Slots, Max Capacity of 768GB
• Slots: 3x PCI-Express 3.0 x16 Slots, 2x PCI-Express 3.0 x16 Slots (Single at x16, dual at x8/x8), 2x PCI-Express 3.0 x16 Slots (x8 mode)
• Multi-Graphics: Supports AMD 4-Way CrossFireX Technology, NVIDIA 4-Way SLI Technology
• Storage:
  • SATA: 10x SATA3 Ports, Eight Support RAID 0, 1, 5, 10
  • M.2: 1x M.2 Port, (w/ M Key), Supports type 2242/2260/ 2280/22110 and both SATA & PCIE mode
  • U.2: 4x U.2 Ports
• Audio: Realtek S1220A 7.1-channel High Definition Audio CODEC
• Video: Aspeed AST2500 Graphics w/ 64MB VRAM Video Memory
• LAN: 2x Intel I210-AT Gigabit Ethernet Controllers
• Ports: 8x USB 3.1 Gen 1 Ports (4 rear, 4 at mid-board), 2x USB 3.1 Gen 2 Ports (1 Type A rear, 1 Type-C rear), 4x USB 2.0 Ports (2 rear, 2 at mid-board), 1x PS/2 keyboard/mouse combo Port, 1x Optical S/PDIF out Port, 2x RJ45 LAN Ports, Audio I/O Jacks
• Power Connector: 1x 24-pin EATX Power Connector, 2x 8-pin EATX 12V Power Connectors, 1 x 6-pin EATX 12V_3 Power connector
• Form Factor: EEB, 12.0 x 13.0 inch / 305.0 x 330.0 cm
