Specification

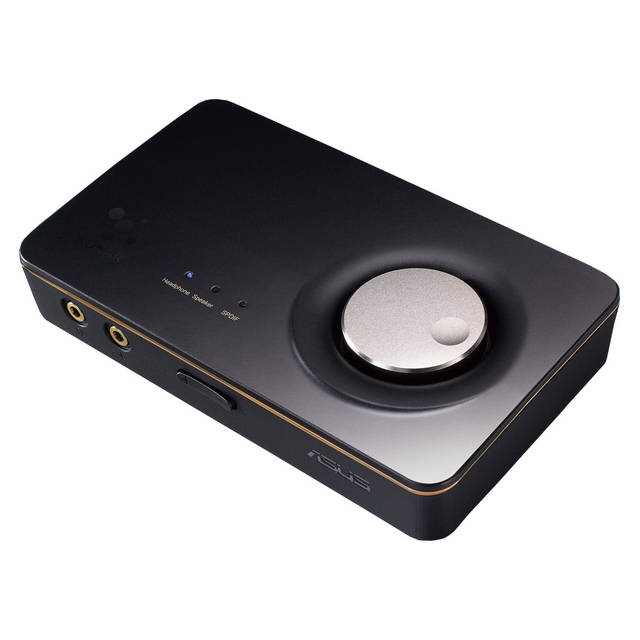

• Mfr Part Number: XONAR U7 MKII
• Features:
  • True 7.1-channel, 192kHz/24-bit HD surround sound with a 114dB SNR from a compact, USB-powered device
  • Integrated headphone amplifier boosts sound and reveals musical details
  • Dedicated headphone and mic volume controls enable instant audio adjustments for better gaming and media streaming experiences
  • Clickable volume control knob for convenient switching between headphone and speaker output
  • Sonic Studio software suite with intuitive, single-screen interface and Sonic Radar Pro for mapping opponent locations in first-person shooters
• Chipset: Audio Processor - C-Media USB2.0 6632AX High-Definition Sound Processor (Max. 192KHz/24bit)
• Audio Interface: USB 2.0 high-speed/ USB 1.0 for playback
• Audio Performance:
  • Output Signal-to-Noise Ratio (A-Weighted) (Front-out): 114 dB
  • Input Signal-to-Noise Ratio (A-Weighted): 110 dB
  • Output THD+N at 1kHz (Front-out): >0.0006 %(104 dB)
  • Frequency Response (-3dB, 24bit/96KHz input): 10 Hz to 46 KHz
  • Output/Input Full-Scale Voltage:
    • Line output (RCA, 3.5): 1 Vrms (2.828 Vp-p)
    • Headphone Output: 1.3 Vrms (3.677 Vp-p)
• Digital-to-analog Converter(DAC): Cirrus Logic CS4398; Cirrus Logic CS4362
• Sample Rate and Resolution:
  • Analog Playback Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  • Analog Recording Sample Rate and Resolution: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
  • S/PDIF Digital Output: 44.1K/48K/88.2K/96K/176.4K/192KHz @ 16bit/24bit
• Connectivity:
  • Analog Output: 4x 3.5 mm jack (1/8") (Headphone out /Side out/Center-Subwoofer out/Rear out); 2x RCA (Un-Balanced)
  • Analog Input: 1x 3.5 mm jack (1/8") (Line-in/ Mic-in combo)
  • Digital: 1x S/PDIF out (1x Coaxial)
• Special Features: Sonic Studio
• Operating System: Windows 10/ 8.1/ 7; Mac OS X
• Dimensions (WxLxH): 80.0 x 130.0 x 25.0 mm
• Accessories:
  • 1x S/PDIF Adapter
  • 1x Quick Start Guide
  • 1x USB Cable
