Specifications

• Mfr Part Number: D-117
• Features:
  • Combo interfae either PS/2 or USB input to the LCD Drawer
  • Multiple keyboard language selections with touchpad
  • Enhanced aesthetics with new molded front panel and two point lock
• LCD Drawer & KVM Benefits:

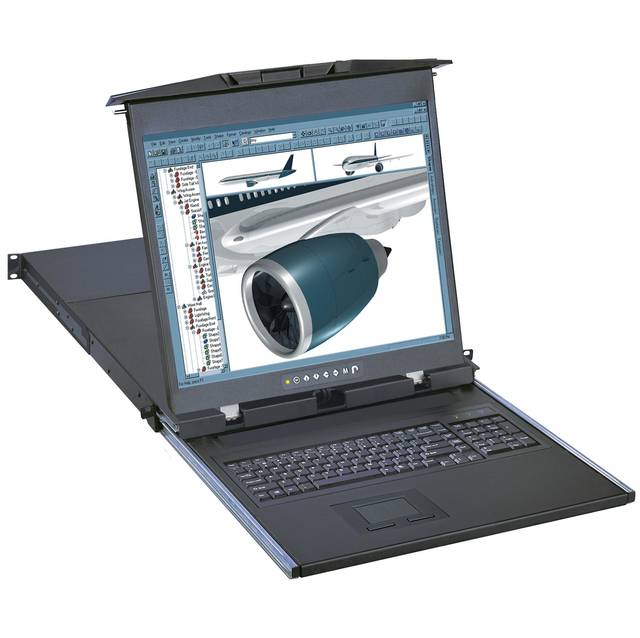

  • 1U dual slide rackmount drawer with 17" LCD
  • Multi-user Matrix KVM with either 16 or 32 ports in 1U(Optional)
  • Cost efficient Combo KVM integration
  • Mix PS2, USB & SUN with Multi-Platform switch capability
• Display:
  • Display Area: 17" TFT
  • Response Time: 1.3 ms
  • Display Colors: 16.7 Million
  • Brightness: 300 cd/m2
  • Contrast Ratio: 1,000:1
  • Viewing Angle(H/V): 160° / 160°
  • Max/Native Resolution: 1280 x 1024
  • Interface: VGA
  • LCD Panel MTBF(hrs): 50,000
  • Power Input: Auto-sensing 100 to 240VAC, 50/60 HZ
  • Power Consumption: Max - 48W; Standby - 5W
  • Regulation Approval: FCC, CE
• Dimensions: 17.4 x 25.6 x 1.73 inch/ 442 x 650 x 44 mm
• Weight: 35 lbs/ 16 kg
