Specifications

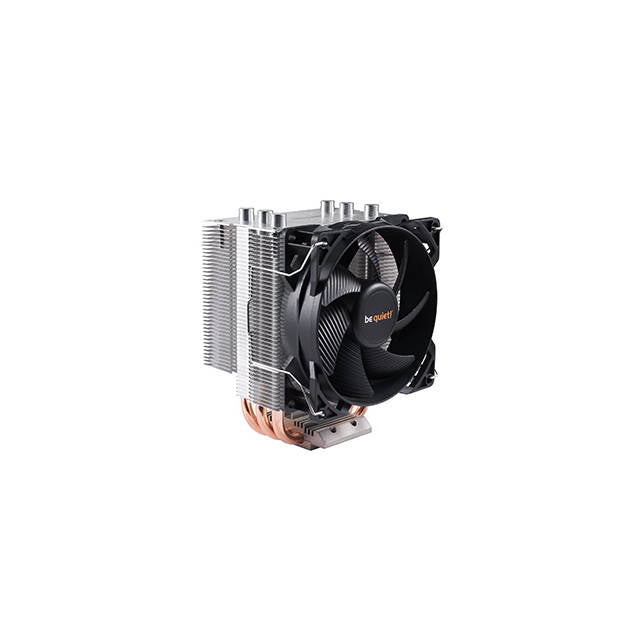

• Mfr Part Number: BK008
• Features:
  • High cooling capacity for this category, at 120W TDP
  • Three 6mm heat pipes with aluminum caps carry heat to cooling fins for high performance
  • Compact design saves space, making cooler compatible with a vast array of equipment and possible installation configurations
  • Full configuration of RAM memory banks in PC cases with limited space
  • Compatibility with Intel and AMD sockets
  • Seven blade silence-optimized 92mm be quiet! PWM fan with high-quality sleeve bearing is optimized for quietness and supports the best balance of cooling performance and silent operation
  • Fan blades are airflow-optimized to reduce noise-generating turbulence
  • Even at 100% PWM function, noise is a scant 25.4dB(A)
• Socket Type:
  • Intel: LGA 1150 / 1151 / 1155 / 1156

  • AMD: Socket AM2(+) / AM3(+) / AM4 / FM1 / FM2(+)

• Fan:
  • Model: 1x silence-optimized fan
  • Speed: 2000 RPM
  • Noise Level: 50% RPM - 13.1 dBA, 75% RPM - 19.2 dBA, 100% RPM - 25.4 dBA
  • Air Flow: 35.14 CFM / 59.38 m3/h
  • Air Pressure: 1.67 mm H2O
  • Rated Voltage: 12 V
  • Input Current: 0.32 A
  • Input Power: 3.84 W
  • Bearing Type: Sleeve
  • Motor: 4-pole Fan Motor
  • Connector: 4 Pin PWM
  • Cable Length: 220 mm
  • Life Expectancy: 80,000 hours @ 25°C
  • Dimensions: 92.0 x 92.0 x 25.0 mm
• Heatsink:
  • Heat Pipes Number / Diameter: 3x 6 mm
  • Material: Copper Base / Aluminum Fins
  • Number of Fins: 33
  • CPU Contact Surface: CNC machined
  • Dimensions : 56.2 x 97.0 x 124.8 mm
• Thermal Design Power: 120 W
• Dimensions (WxLxH): 97.0 x 81.8 x 124.8 mm (Overall)(w/o mounting material)
• Weight: 0.36 kg
