Specifications

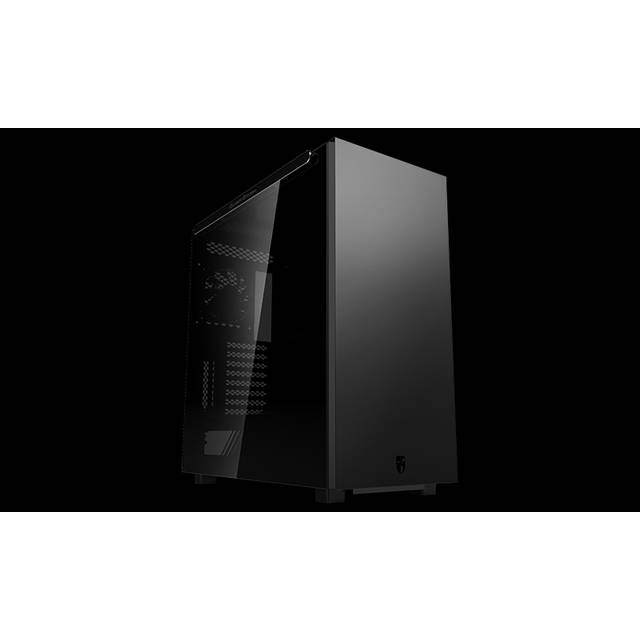

• Mfr Part Number: MACUBE 550 BK
• Features:
  • Full tower case that supports up to E-ATX motherboard, and 420mm GPU(when installed vertically).
  • With novel functional designs and concise appearance designs, MACUBE 550 presents a mysticism and minimalism style.
  • The tempered glass panel with aluminum bar is aesthetic and convenient.
  • The unique dragon scale ventilation holes on the backside panel add on the lingering charm of mysticism.
  • The scale ventilation holes can serve as either intake or exhaust, thereby making the air path of the case flexible and efficient. liquid cooling system at top, 120mm radiator liquid cooling system at rear
  • Structure built with 0.8mm SGCC steel, sturdy, tenacious and corrosion resistant.
  • The combination of the matte coating and concealed logos brings premium feeling.
• Case Type: Middle Tower
• Color: Black
• Material: ABS+SGCC+Tempered Glass+Aluminum Plate
• M/B Type: Mini-ITX/Micro-ATX/ATX ¼ MAX 305*276mm ¼
• Drive Bays:
  • Internal Bay: 4x 3.5", 3x 2.5"
• Expansion Slots: 8 + 2
• Cooling Fans System:
  • Front: 120/240/360mm; Side: 120/140/240/280/360mm ; Rear: 120/140mm
• Front I/O Panel: 2—USB3.0/Audio—1/Mic—1
• Maximum Compatibility:
  • VGA Card Length: 310mm (horizontal)/ 420mm (vertical)
  • CPU Cooler Height: 186 mm
• Power Supply: ATX PS2 (Length less than 170mm)
• Dimensions (WxLxH): 241.0 x 526.0 x 520.0 mm
• Weight: 12.20 kg
