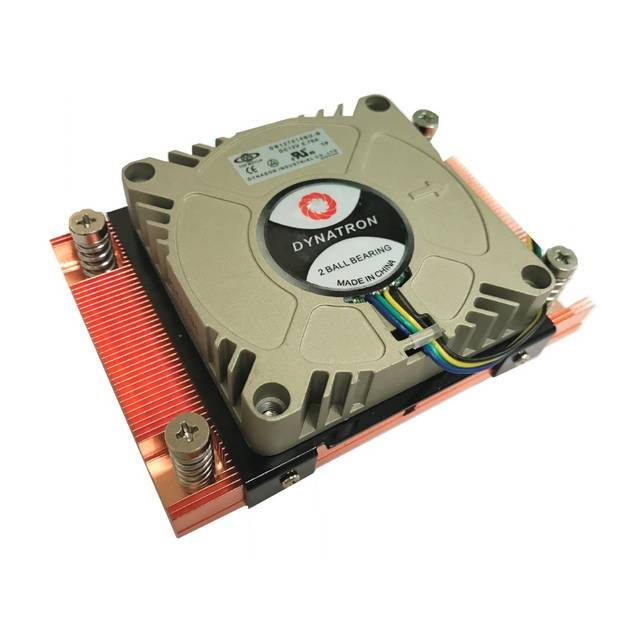

Dynatron A18 1U Server CPU Fan For AMD Socket AM4

$37.34 ~~$40.03~~

Specifications

Mfr Part Number: A18
CPU Application: AMD Socket AM4
Solution: 1U Server
Material: Copper 1100 with Skived Fins
Fan:
- Speed:
  - At Duty Cycle 20%: 1100 RPM ± 200 RPM
  - At Duty Cycle 50%: 2600 RPM ± 10% RPM
  - At Duty Cycle 100%: 6000 RPM ± 10% RPM
- Power:
  - At Duty Cycle 20%: 0.6 W
  - At Duty Cycle 50%: 1.2 W
  - At Duty Cycle 100%: 8.8 W
- Bearing: 2 Ball Bearing
- Rated Voltage: 12V
- Air Flow:
  - At Duty Cycle 20%: 2.5 CFM
  - At Duty Cycle 50%: 5.8 CFM
  - At Duty Cycle 100%: 14.3 CFM
- Noise Level:
  - At Duty Cycle 20%: 19.1 dBA
  - At Duty Cycle 50%: 34.2 dBA
  - At Duty Cycle 100%: 53.8 dBA
- Air Pressure:
  - At Duty Cycle 20%: 1.25 mm-H2O
  - At Duty Cycle 50%: 7.0 mm-H2O
  - At Duty Cycle 100%: 50.46 mm-H2O
- Lead Wire Pin Out:
  - Pin1- (-)
  - Pin2- (+)
  - Pin3- (Techometer/Signal output)
  - Pin4- (PWM)
Dimensions:
- Fan: 70.0 x 70.0 x 15.0 mm
- Overall: 106.0 x 76.0 x 27.5 mm
Weight: 450.0 ± 5.0 g
RoHS Compliant
