Specifications

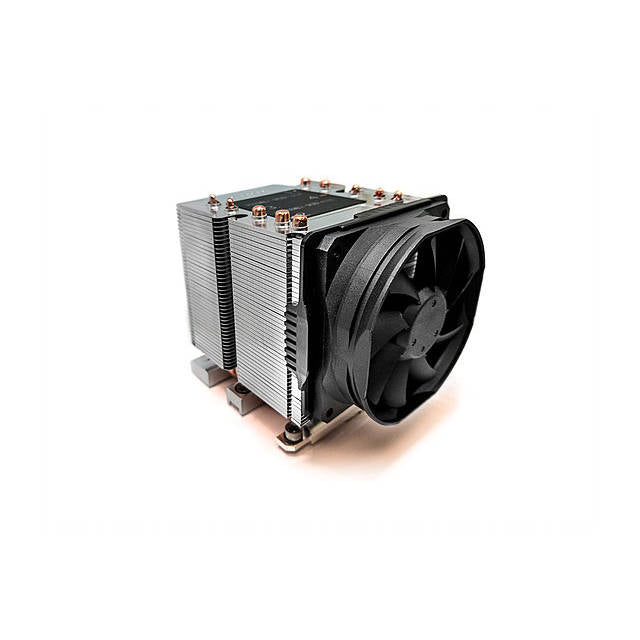

• Mfr Part Number: B14
• CPU Socket: FCLGA3647 Square ILM
• Solution: 3U Server and Up
• Material: Aluminum Heatsink with Heatpipe Embedded
• Fan Dimension: 80.0 x 80.0 x 25.0 mm
• Speed:
  • At Duty Cycle 20%: 1000 ± 200 RPM
  • At Duty Cycle 50%: 2300 ± 10% RPM

  • At Duty Cycle 100%: 4000 ± 10% RPM
• Rated Voltage: 12V
• Bearing: 2 Ball Bearing
• Power:
  • At Duty Cycle 20%: 0.96 W

  • At Duty Cycle 50%: 1.44 W

  • At Duty Cycle 100%: 4.8 W

• Air Flow:
  • At Duty Cycle 20%: 12.5 CFM

  • At Duty Cycle 50%: 28.8 CFM

  • At Duty Cycle 100%: 50.0 CFM

• Noise Level:
  • At Duty Cycle 20%: 16.0 dBA

  • At Duty Cycle 50%: 30.2 dBA

  • At Duty Cycle 100%: 42.2 dBA

• Air Pressure:
  • At Duty Cycle 20%: 0.5 mm-H2O

  • At Duty Cycle 50%: 2.6 mm-H2O

  • At Duty Cycle 100%: 7.8 mm-H2O

• Lead Wire Pin Out:
  • Lead Wire Pin Out
  • Pin1- (-)
  • Pin2- (+)
  • Pin3- (Techometer/Signal output)
  • Pin4- (PWM)
• Thermal Grease: Shin-Etsu 7762 Pre-printed

• Dimensions: 90.0 x 90.0 x 110.0 mm

• Weight: 600.0 g

• RoHS Compliant
