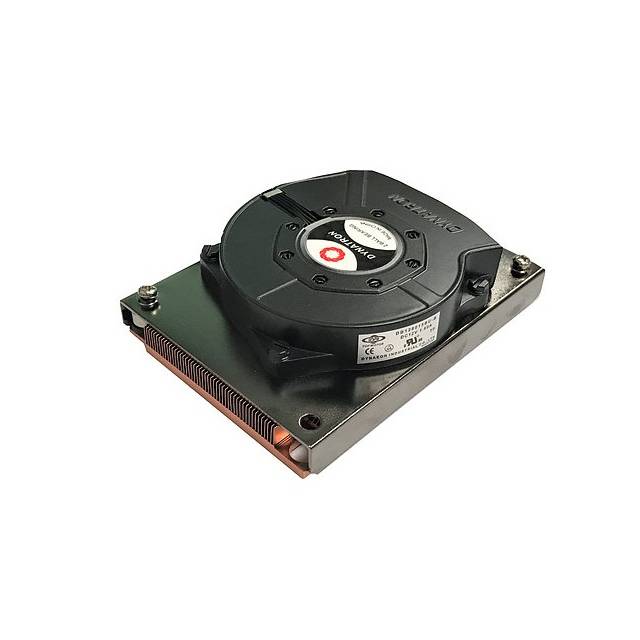

Specifications

• Mfr Part Number: B3

• CPU Socket: FCLGA3647
• Solution: 1U Server and Up

• Material: Copper 1100 with Skived Fins

• Fan:
  • Speed:
    • At Duty Cycle 20%: 1000 ± 200 RPM

    • At Duty Cycle 50%: 4000 ± 10% RPM

    • At Duty Cycle 100%: 7000 ± 10% RPM

  • Bearing: 2 Ball Bearing

  • Rated Voltage: 12 V
  • Power:
    • At Duty Cycle 20%: 0.60 W

    • At Duty Cycle 50%: 3.84 W

    • At Duty Cycle 100%: 19.2 W

  • Air Flow:
    • At Duty Cycle 20%: 3.0 CFM
    • At Duty Cycle 50%: 12.0 CFM

    • At Duty Cycle 100%: 21.0 CFM

  • Noise Level:
    • At Duty Cycle 20%: 16.0 dBA

    • At Duty Cycle 50%: 44.9 dBA
    • At Duty Cycle 100%: 57.1 dBA

  • Air Pressure:
    • At Duty Cycle 20%: 1.5mm-H2O
    • At Duty Cycle 50%: 23.2 mm-H2O
    • At Duty Cycle 100%: 70.9 mm-H2O
  • Lead Wire Pin Out:
    • Pin1- (-)
    • Pin2- (+)
    • Pin3- (Techometer/Signal output)
    • Pin4- (PWM)

• Thermal Grease: Shin-Etsu 7762 Pre-printed

• Dimensions:
  • Fan: 80.0 x 15.0 mm

  • Overall: 107.0 x 80.5 x 28.0 mm

• Weight: 460.0 g

• RoHS Compliant
