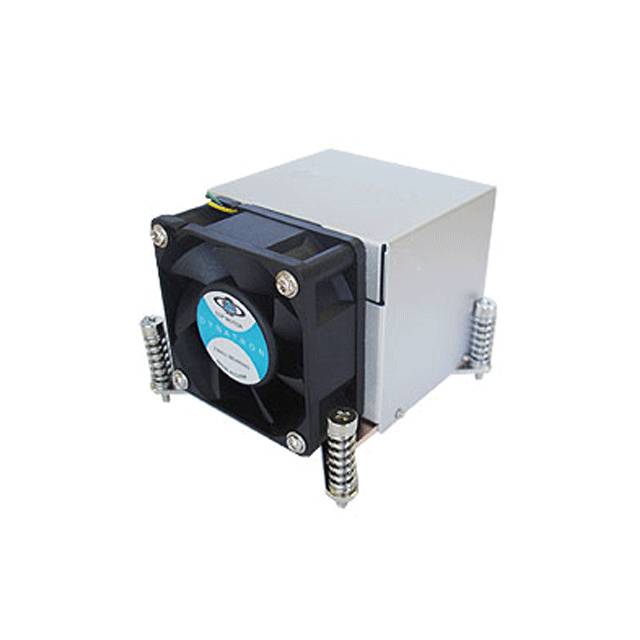

Dynatron K650 2U&Up Server CPU Fan For Intel LGA1155/1156

$33.48 $35.89

Specifications

  • Mfr Part Number: K650
  • CPU Application:
    • LGA 1155: 2nd Generation Intel Core i7-2600, i5-2500 Series & Sandy Bridge Xeon 1220, 1220L, 1225, 1230, 1235, 1240, 1245, 1260L, 1270, 1275 & 1280 Processors
    • LGA 1156: Intel Core i3-530 & i3-540, Core i5-650, i5-660, i5-661, i5-670 & i5-750, Core i7-870 & i7-860, Xeon 3400 Series Processors
  • Material: Copper Base with Aluminum Stacked Fin
  • Fan:
    • Rated Speed:
      • At Duty Cycle 0~20%: 1400 RPM
      • At Duty Cycle 50%: 3500 RPM
      • At Duty Cycle 100%: 7000 RPM
    • Bearing: Double-Ball
    • Rated Voltage: 12V
    • Rated Input Power:
      • At Duty Cycle 0~20%: 0.6 W
      • At Duty Cycle 50%: 1.2 W
      • At Duty Cycle 100%: 5.4 W
    • Rated Airflow:
      • At Duty Cycle 0~20%: 7.405 CFM
      • At Duty Cycle 50%: 18.517 CFM
      • At Duty Cycle 100%: 38.283 CFM
    • Rated Acoustical Level:
      • At Duty Cycle 0~20%: 20.8 dBA
      • At Duty Cycle 50%: 35.9 dBA
      • At Duty Cycle 100%: 48.1 dBA
    • Rated Static Pressure:
      • At Duty Cycle 0~20%: 0.574 mm-H2O
      • At Duty Cycle 50%: 3.586 mm-H2O
      • At Duty Cycle 100%: 13.552 mm-H2O
    • Lead Wire Pin Out:
      • Pin1 - Black (-)
      • Pin2 - Yellow (+)
      • Pin3 - Green (Tachometer / Signal Output)
      • Pin4 - Blue (PWM)
  • Dimensions:
    • Fan: 60.0 x 60.0 x 25.0 mm
    • Overall: 88.5 x 87.0 x 64.0 mm
  • Weight: 460.0 g
  • RoHS Compliant

Vendor: Dynatron
