Zoom Dynatron R5 2U&Up Server CPU Fan For Intel Square Type LGA2011

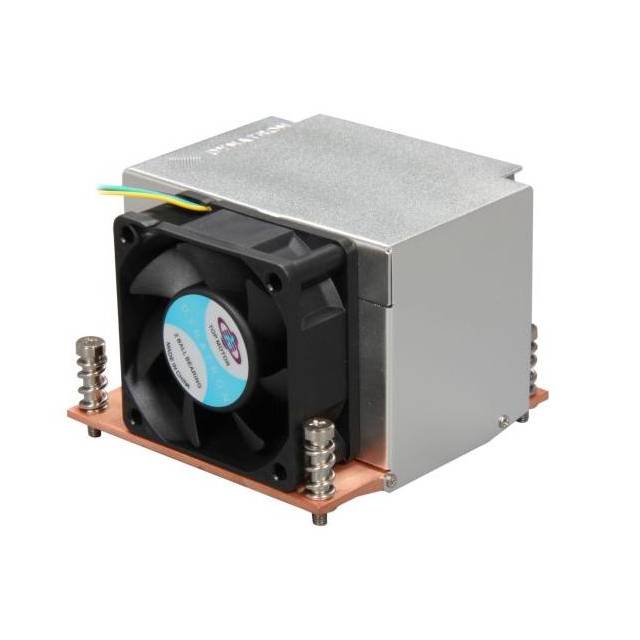

Dynatron R5 2U&Up Server CPU Fan For Intel Square Type LGA2011

$43.78 $46.93

Specifications

  • Mfr Part Number: R5
  • CPU Application: Intel Socket 2011; Square Type, 80 x 80mm mounting pitch; Supports Intel Sandy Bridge EP/EX Processors up to 150 Watts
  • Material: H.C.C.(Heatpipes Contact CPU) Copper Base & Aluminum Fins with Heatpipes embedded
  • Fan:
    • Speed:
      • At Duty Cycle 0~20%: 1600 RPM
      • At Duty Cycle 50%: 4000 RPM
      • At Duty Cycle 100%: 8000 RPM
    • Bearing: 2 Ball Bearing
    • Rated Voltage: 12 V
    • Power:
      • At Duty Cycle 0~20%: 0.6 W
      • At Duty Cycle 50%: 1.8 W
      • At Duty Cycle 100%: 7.2 W
    • Air Flow:
      • At Duty Cycle 0~20%: 8.75 CFM
      • At Duty Cycle 50%: 21.88 CFM
      • At Duty Cycle 100%: 43.75 CFM
    • Noise Level:
      • At Duty Cycle 0~20%: 16.85 dBA
      • At Duty Cycle 50%: 35.94 dBA
      • At Duty Cycle 100%: 51.0 dBA
    • Air Pressure:
      • At Duty Cycle 0~20%: 0.70 mm-H2O
      • At Duty Cycle 50%: 4.42 mm-H2O
      • At Duty Cycle 100%: 17.70 mm-H2O
    • Lead Wire Pin Out:
      • Pin1-Black (-)
      • Pin2-Yellow (+)
      • Pin3-Green (Techometer/Signal output)
      • Pin4-Blue (PWM)
  • Dimensions:
    • Fan: 60.0 x 60.0 x 25.0 mm
    • Overall: 91.5 x 91.5 x 66.0 mm
  • Weight: 590.0 g
  • RoHS Compliant

Vendor: Dynatron
