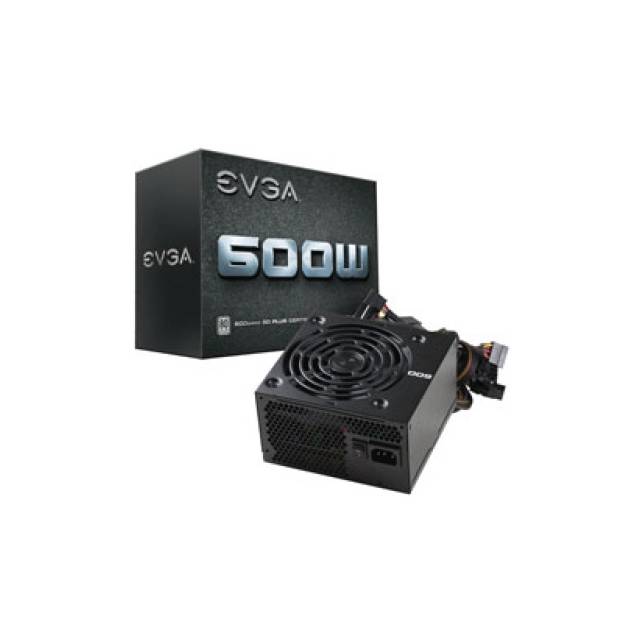

Zoom EVGA 100-W1-0600-KR 600W 80 PLUS ATX12V & EPS12V Power Supply

EVGA 100-W1-0600-KR 600W 80 PLUS ATX12V & EPS12V Power Supply

$65.66 $70.39

Specifications

  • Mfr Part Number: 100-W1-0600-KR
  • Features:
    • Quiet and Intelligent Auto Fan for near-silent operation
    • Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
  • Maximum Power: 600 W
  • Input:
    • Voltage: 100 ~ 240 VAC
    • Current: 10-5 A
    • Frequency Range: 50 ~ 60 Hz
  • Type: ATX12V / EPS12V
  • Efficiency: 80% Typical
  • MTBF: 100,000 hours
  • Fan: 1x 120mm Sleeve Bearing Fan
  • Output: +3.3V @ 24A, +5V @ 20A, +12V @ 49A, +5VSB @ 3A, -12V @ 0.3A
  • Connectors: 1x 24pin ATX Main Connector, 1x 8(4+4)pin EPS Power Connector, 2x 8(6+2)pin PCI-Express Connectors, 6x SATA Connectors, 3x 4pin Peripheral Connectors, 1x Floppy Connector
  • Approvals: TUV, cUL, UL, CE, FCC, RCM, WEEE, RoHS
  • Dimensions (LxH): 140.0 x 85.0 mm
  • Weight: 29.0 lbs

Vendor: EVGA
