Specifications

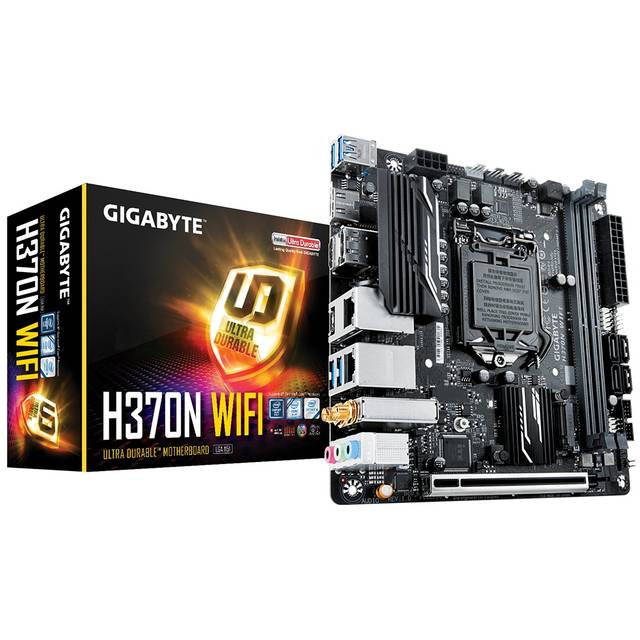

• Mfr Part Number: H370N WIFI
• CPU: LGA1151
  • Supports 8th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
  • L3 cache varies with CPU
• Chipset: Intel H370 Express
• Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB

• Slots: 1x PCI-Express 3.0 x16 Slot
• Storage:
  • SATA: 4x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 2x M.2 Ports (w/ M Key), one supports type 2260/ 2280 SATA and PCIe x4/x2 SSD; one supports type 2260/2280 PCIe x4/x2 SSD
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel Gigabit Ethernet Controllers; Dual-Band 802.11 a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 5.0
• Ports: 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 1x USB Type-C Port (rear, with USB 3.1 Gen 1 support), 2x USB 2.0/1.1 Ports (via header), 2x HDMI Ports, 1x DisplayPort, 2x SMA antenna connectors, 2x RJ45 LAN Ports, Audio I/O Jacks

• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: Mini-ITX, 17.0 x 17.0 cm
