Specifications

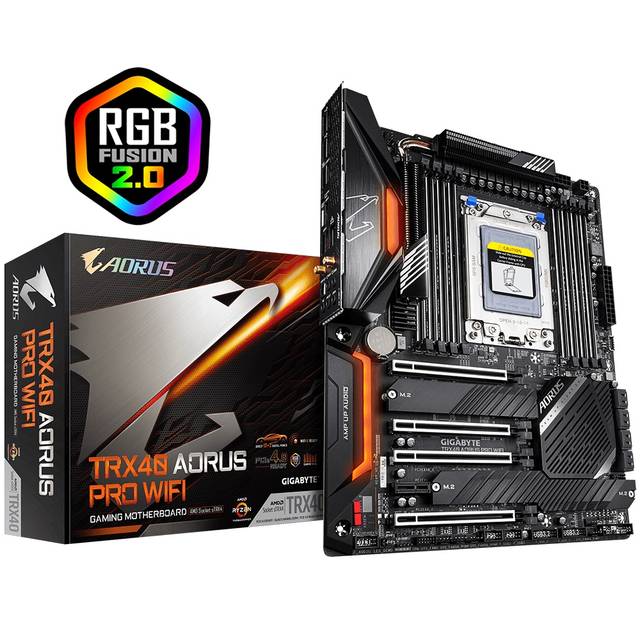

• Mfr Part Number: TRX40 AORUS PRO WIFI
• CPU:
  • AMD Socket sTRX4:
    - Support 3rd Generation AMD Ryzen Threadripper processors
• Chipset: AMD TRX40
• Memory:
  • 8 x DDR4 DIMM sockets supporting up to 256 GB (32 GB single DIMM capacity) of system memory
  • Quad Channel memory architecture
  • Support for DDR4 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
• Audio:
  • Realtek ALC4050H codec+Realtek ALC1220-VB codec
  • Support for DTS:X Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
• LAN: Intel GbE LAN chip (10/100/1000 Mbit)
• Wireless Communication module:
  • Intel Wi-Fi 6 AX200
    - Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    - BLUETOOTH 5.0
    - Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
    * Actual data rate may vary depending on environment and equipment.
• Expansion Slots:
  • 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)
  • 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)
  • 1 x PCI Express x1 slot
    - All of the PCI Express slots conform to PCI Express 4.0 standard.
• Multi-Graphics Technology:
  • Support for AMD Quad-GPU CrossFire and 3-Way/2-Way AMD CrossFire technologies
  • Support for NVIDIA Quad-GPU SLI and 3-Way/2-Way NVIDIA SLI technologies
• Storage Interface:
  • CPU:
    - 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M)
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2Q)
  • Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P)
    - 8 x SATA 6Gb/s connectors
  • Support for RAID 0, RAID 1, and RAID 10
• USB:
  • CPU:
    - 3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
  • Chipset:
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    - 1 x USB Type-C port with USB 3.2 Gen 2/Gen 1 support, available through the internal USB header
    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers
  • Chipset+2 USB 2.0 Hubs:
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
• Internal I/O Connectors:
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x 4-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 2 x system fan headers
  • 4 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 3 x M.2 Socket 3 connectors
  • 8 x SATA 6Gb/s connectors
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB Type-C header, with USB 3.2 Gen 1/Gen 2 support
  • 2 x USB 3.2 Gen 1 headers
  • 2 x USB 2.0/1.1 headers
  • 1 x GIGABYTE add-in card connector
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 2 x temperature sensor headers
  • 1 x Clear CMOS jumper
• Back Panel Connectors:
  • 4 x USB 2.0/1.1 ports
  • 1 x Q-Flash Plus button
  • 5 x USB 3.2 Gen 2 Type-A ports (red)
  • 1 x USB Type-C port, with USB 3.2 Gen 2 support
  • 1 x RJ-45 port
  • 2 x SMA antenna connectors (2T2R)
  • 1 x optical S/PDIF Out connector
  • 5 x audio jacks
• I/O Controller: iTE I/O Controller Chip
• H/W Monitoring:
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Overheating warning
  • Fan fail warning
  • Fan speed control
    - Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
• BIOS:
  • 2 x 128 Mbit flash
  • Use of licensed AMI UEFI BIOS
  • Support for DualBIOS
  • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Unique Features:
  • Support for APP Center
    * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    - @BIOS
    - AutoGreen
    - Cloud Station
    - EasyTune
    - Fast Boot
    - Game Boost
    - ON/OFF Charge
    - RGB Fusion
    - Smart Backup
    - Smart Keyboard
    - Smart Survey
    - System Information Viewer
    - USB Blocker

  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
• Bundled Software:
  • Norton Internet Security (OEM version)
  • cFosSpeed
  • XSplit Gamecaster + Broadcaster (12 months license)
• Operating System: Support for Windows 10 64-bit
• Form Factor: ATX Form Factor; 30.5cm x 24.4cm
