Specifications

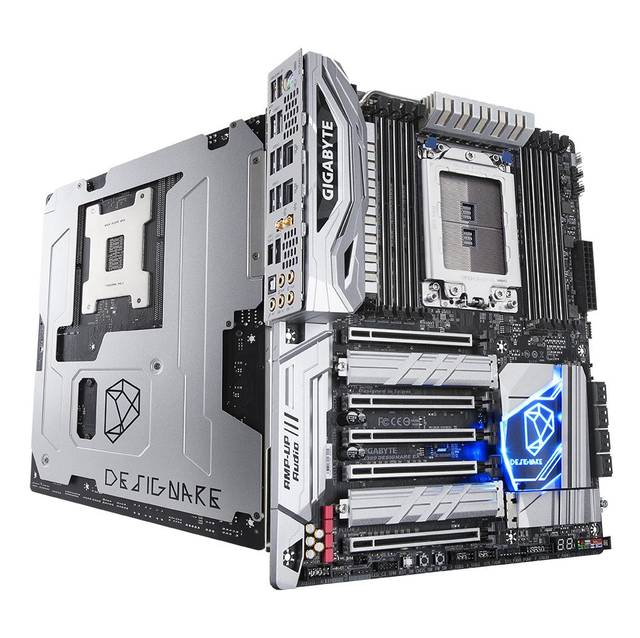

• Mfr Part Number: X399 DESIGNARE EX
• CPU: Socket TR4
  • AMD Ryzen Threadripper Processor
• Chipset: AMD X399
• Memory: 8x DDR4-3600+(OC)/ 3466(OC)/ 3333(OC)/ 3200(OC)/ 2933(OC)/ 2667/ 2400/ 2133 MHz Slots, Quad Channel, ECC, non-ECC, Unbuffered, Max Capacity of 128GB
• Slots: 4x PCI-Express 2.0 x16 Slots (two run at x8), 1x PCI-Express 2.0 x16 Slot (runs at x4)
• Multi-Graphics: Support for AMD Quad-GPU/ 4-Way/ 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU/ 4-Way/ 3-Way/ 2-Way SLI Technology
• Storage:
  • SATA: 8x SATA3 Ports, Support RAID 0, 1, 10
  • M.2: 3x M.2 Ports (Key M), two support type 2260/ 2280/ 22110 SATA & PCIe x4/x2 SSD, one supports type 2242/ 2260/ 2280 SATA & PCIe x4/x2 SSD
• Audio: Realtek ALC1220 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel Gigabit Ethernet Controllers; 802.11a/b/g/n/ac Wireless LAN (2.4/5GHz); Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
• Ports: 2x USB 3.1 Gen2 Ports (1 Type-A rear, 1 Type-C rear), 11x USB 3.1 Gen1 Ports (8 rear, 3 via header), 4x USB 2.0/1.1 Ports (via headers), 1x PS/2 Keyboard/Mouse Port, 2x RJ45 LAN Ports, 2x MMCX Antenna Connectors (2T2R), 1x Optical S/PDIF OUT, Audio I/O Jacks
• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm
