Specifications

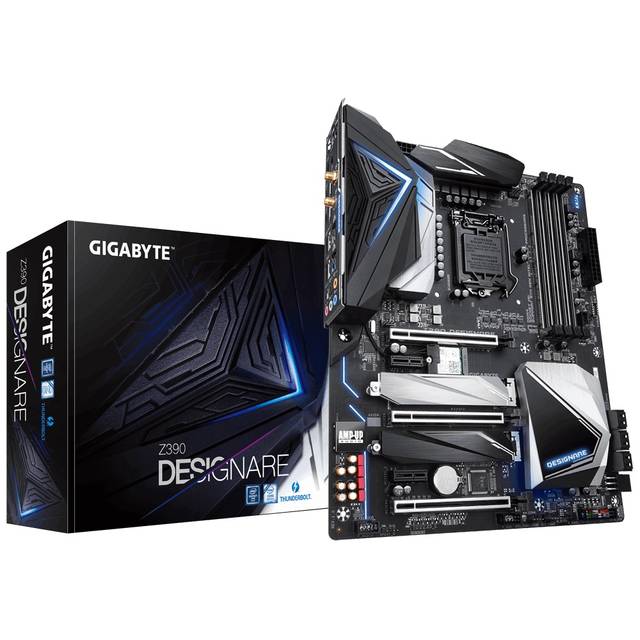

• Mfr Part Number: Z390 DESIGNARE
• CPU: LGA1151
  • Supports 9th and 8th Generation Intel Core i9/ i7/ i5/ i3, Pentium and Celeron Processors
  • L3 cache varies with CPU
• Chipset: Intel Z390 Express
• Memory: 4x DDR4-4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3666(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 64GB

• Slots: 3x PCI-Express 3.0 x16 Slots (one runs at x8, one runs at x4), 2x PCI-Express 3.0 x1 Slots
• Multi-Graphics: Supports AMD Quad-GPU, 3-Way/ 2-Way CrossFireX and NVIDIA Quad-GPU, 2-Way SLI Technology

• Storage:
  • SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10

  • M.2: 2x M.2 Ports (M Key), one supports type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD (M2M); one supports type 2242/ 2260/ 2280/ 22110 SATA and PCIe x4/x2 SSD (M2P)

• Audio: Realtek ALC1220-VB 7.1-Channel High Definition Audio CODEC
• LAN: 2x Intel Gigabit Ethernet Controllers, Intel CNVi interface 802.11a/b/g/n/ac Wireless LAN (2.4/5 GHz Dual-Band), Bluetooth 5.0

• Ports: 5x USB 3.1 Gen 2 Ports (2 Type-C rear, 2 Type-A rear, 1 Type-C via header), 6x USB 3.1 Gen 1 Ports (4 rear, 2 via header), 4x USB 2.0/1.1 Ports (2 rear, 2 via header), 1x PS/2 Mouse/Keyboard Port, 1x HDMI Port, 1x DisplayPort In, 1x Optical S/PDIF Out Port, 2x SMA antenna connectors (2T2R), 2x RJ45 LAN Ports, Audio I/O Jacks

• Power Connector: 1x 24-pin ATX Main Power Connector, 1x 8-pin ATX 12V Power Connector, 1x 4-pin ATX 12V Power Connector
• Form Factor: ATX, 30.5 x 24.4 cm
