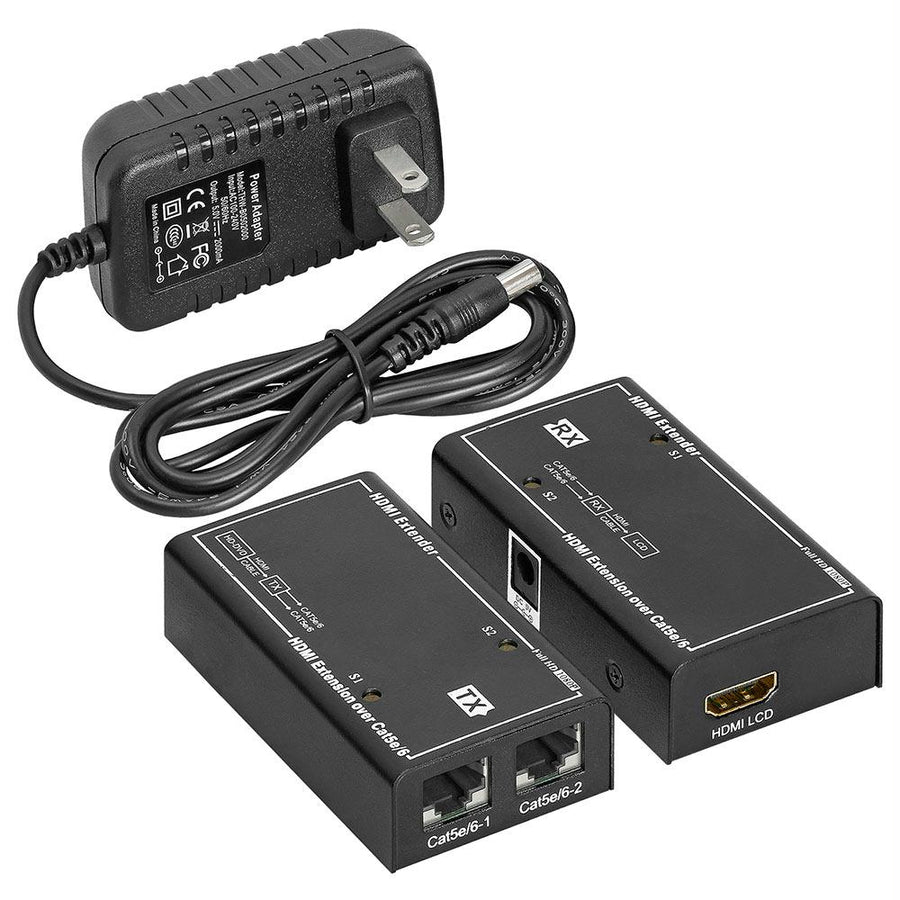

Hdmi over ethernet (cat5e/cat6/cat7 ) balun extender repeater - up to 196 ft, 1080p, 3d this hdmi transmitter and receiver is the right way to send your hdmi signal over long distances.It allows you to use 2x cat5e/6/7 cables to extend the hdtv display up to 60m for 1080p without signal loss.It is equipped with hdmi connector and is capable of supporting dvi equipment when used with an hdmi to dvi adapter.It follows the standard of ieee-568b, cat5e/6/7 cable can subsitude hdmi cable to achieve long distance transmission.It is designed for use in home theater, professional a/v and personal computer switching applications.Features: hdmi, hdcp 1.2 and dvi compliant support full 3d pass-through support high resolution up to 1080p extend to 196 ft over 2 x cat5e/6/7 support cec bypass external and internal edid settings specification: input port: 1 x hdmi (female connector) output port: 2 x cat5e/6/7 input port: 2 x cat5e/6/7 output port: 1 x hdmi (female connector) bandwidth: 10.2gbps output resolution: 480i~1080p@50/60hz, 1080p@24/50/60hz, vga~uxga operating temperature: -15°c~55°c/5°f~131°f deep color: 36bit chassis: metal demension: 83mm(l)x46mm(w)x22mm(h) weight: 205g power supply: dc5v package contents: 1 x hdmi transmitter unit, 1x hdmi receiver unit 1 x power supply 1 x user manual
