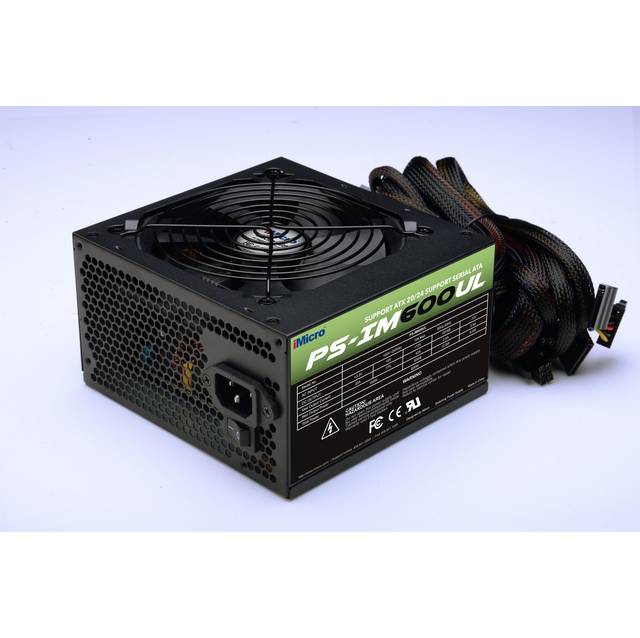

Zoom iMicro PS-IM600UL 600W Power Supply w/ UL Certification

iMicro PS-IM600UL 600W Power Supply w/ UL Certification

$61.16 $65.57

Specifications

  • Mfr Part Number: PS-IM600UL
  • Type: ATX 12V
  • Maximum Power: 600 W
  • Input:
    • Voltage: 100-240VAC
    • Frequency Range: 50 ~ 63 Hz
    • Current: <75A at 115VAC Cold Start at 25°C
  • Efficiency: Min 75% at Full Load 115VAC/60Hz
  • Fan: 1x 120mm Fan (115V - 230V switchover)
  • Output Current: +5V @ 17A; +12V1 @ 42A; +12V2 @ 0A; +3.3V @ 22A; +5VSB @ 2.5A; -12V @ 0.5A
  • OVP: +3.3V, +5V, +12V
  • SCP: All Output to GND
  • Turn on Time: Max 500ms
  • Hold up Time: Min 16ms
  • Connectors: 1x 20+4pin Main Power Connector, 1x 4+4pin EPS 12V Connector, 2x 6+2pin PCI-Express Connector, 4x SATA Connectors, 2x Molex Connectors, 1x Floppy Connector
  • Dimensions: 5.90 x 5.51 x 3.35 inch / 150.0 x 140.0 x 85.0 mm

Vendor: iMicro
