Specifications

• Mfr Part Number: CM8064401831400
• Essentials:
  • Product Collection: Intel Xeon Processor E5 v3 Family
  • Code Name: Products formerly Haswell
  • Vertical Segment: Server

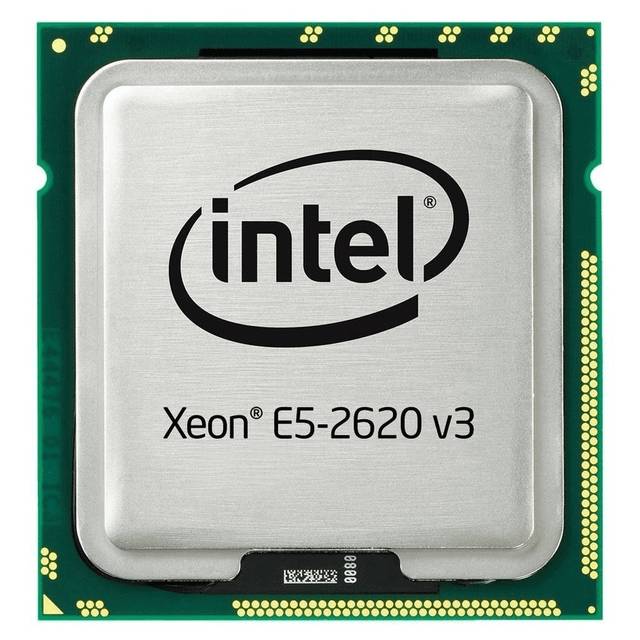

  • Processor Number: E5-2620V3
  • Lithography: 22 nm
• Performance:
  • # of Cores: 6
  • # of Threads: 12
  • Processor Base Frequency: 2.40 GHz
  • Max Turbo Frequency: 3.20 GHz
  • Cache: 15 MB Intel Smart Cache
  • Bus Speed: 8 GT/s
  • # of QPI Links: 2
  • TDP: 85 W
  • VID Voltage Range: 0.65V “1.30V
• Supplemental Information:
  • Embedded Options Available: Yes
• Memory Specifications:
  • Max Memory Size (dependent on memory type): 768 GB
  • Memory Types: DDR4 1600/1866
  • Max # of Memory Channels: 4
  • Max Memory Bandwidth: 59 GB/s
  • Physical Address Extensions: 46-bit
  • ECC Memory Supported: Yes
• Expansion Options:
  • Scalability: 2S
  • PCI Express Revision: 3.0
  • PCI Express Configurations: x4, x8, x16
  • Max # of PCI Express Lanes: 40
• Package Specifications:
  • Sockets Supported: FCLGA2011-3
  • Max CPU Configuration: 2
  • TCASE: 72.6°C
  • Package Size: 52.5mm x 45mm
• Advanced Technologies:
  • Intel Turbo Boost Technology: 2.0
  • Intel vPro Platform Eligibility: Yes
  • Intel Hyper-Threading Technology: Yes
  • Intel Virtualization Technology (VT-x): Yes
  • Intel Virtualization Technology for Directed I/O (VT-d): Yes
  • Intel VT-x with Extended Page Tables (EPT): Yes
  • Intel TSX-NI: No
  • Intel 64: Yes
  • Instruction Set: 64-bit
  • Instruction Set Extensions: Intel AVX2
  • Idle States: Yes
  • Enhanced Intel SpeedStep Technology: Yes
  • Intel Demand Based Switching: Yes
  • Thermal Monitoring Technologies: Yes
  • Intel Flex Memory Access: No
  • Intel Identity Protection Technology: No
• Security & Reliability:
  • Intel AES New Instructions: Yes
  • Secure Key: Yes
  • Intel OS Guard: Yes
  • Intel Trusted Execution Technology: Yes
  • Execute Disable Bit: Yes
