Specifications

• Mfr Part Number: MLW-D12M-A20PW-R1

• Features:

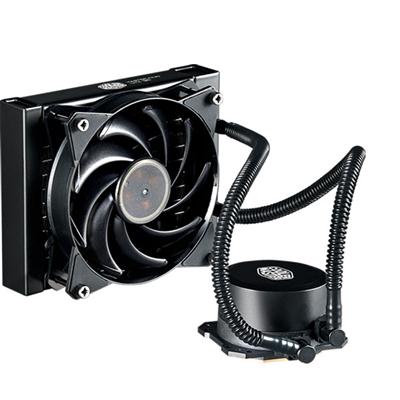

  • Introducing the MasterLiquid Lite 120

  • Dual Dissipation Pump

  • Easy and Reliable

  • Air Balance Fan Design

  • Fits almost all cases

• Socket Type:
  • Intel Socket: LGA 2066/ 2011-v3/ 2011/ 1156/ 1155/ 1151/ 1150/ 1366/ 775

  • AMD Socket: Socket AM4/ AM3+/ AM3/ AM2+/ AM2/ FM2+/ FM2/ FM1

• Main System:

  • Power Connector: 4-Pin

  • Dimensions: 2.4 x 2.4 x 1.4 inch / 62.0 x 62.0 x 36.4 mm

• Radiator
  • Material: Aluminum

  • Dimensions : 6.2 x 4.7 x 1.1 inch / 157.0 x 119.6 x 27.0 mm

• Pump:
  • Noise Level: < 8 dBA

  • Connector: 3-Pin

  • Rated Voltage: 12V DC

  • MTTF: 70,000 hrs
  • Power Consumption: 3.96 W

  • Load Current: 0.3 A

• Waterblock:
  • Dimensions: 3.2 x 3.0 x 1.7 inch / 80.3 x 76.0 x 42.2 mm

• Fan:
  • Speed: 650 ~ 2000 RPM (PWM) ±10%

  • Noise Level: 6 ~ 30 dBA

  • Air Flow: 66.7 ±10% CFM
  • Air Pressure: 2.34 mm H2O

  • MTTF: 160,000 hrs

  • Connector: 4 Pin (PWM)

  • Rated Voltage: 12V DC

  • Dimensions: 4.7 x 4.7 x 1.0 inch / 120.0 x 120.0 x 25.0 mm
