Specifications

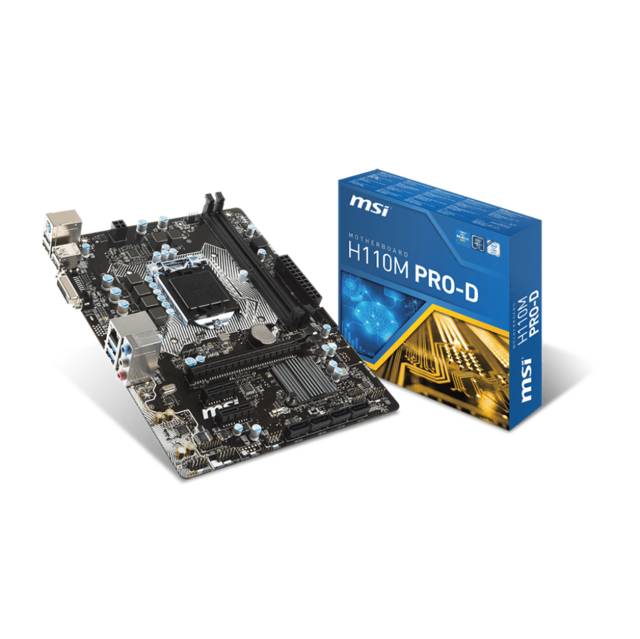

• Mfr Part Number: H110M PRO-D
• CPU: LGA1151
  • Supports 6th Generation Intel Core i7/ i5/ i3/ Pentium/ Celeron Processors
• Chipset: Intel H110
• Memory: 2x DDR4-2133 DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 2x PCI-Express 2.0 x1 Slots
• SATA: 4x SATA3 Ports
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Realtek RTL8111H Gigabit Ethernet Controller
• Ports: 4x USB 3.1 Ports (2 Gen1 rear, 2 Gen1 via header), 6x USB 2.0 Ports (4 rear, 2 via header), 1x PS/2 Keyboard/Mouse Combo Port,  1x DVI-D Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 4pin ATX 12V Power Connector
• Form Factor: MicroATX, 9.3 x 7.1 inch / 23.5 x 18.0 cm
