Specifications

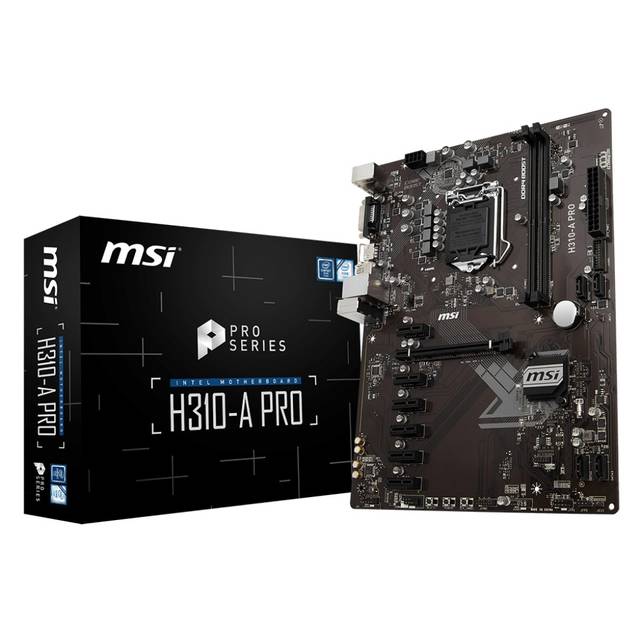

• Mfr Part Number: H310-A PRO

• CPU: LGA1151
  • Supports 8th Generation Intel Core, Pentium Gold and Celeron Processors
• Chipset: Intel H310
• Memory: 2x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Dual Channel, Non-ECC, Unbuffered, Max Capacity of 32GB
• Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 2.0 x1 Slots
• SATA: 4x SATA3 Ports
• Audio: Realtek ALC887 7.1-Channel High Definition Audio CODEC
• LAN: Intel I219V Gigabit Ethernet Controller
• Ports: 4x USB 3.1 Gen 1 Ports (2 rear, 2 via header), 6x USB 2.0 Ports (4 Type-A rear, 2 via header), 1x PS/2 Combo Port, 1x DVI-D Port, 1x HDMI Port, 1x RJ45 LAN Port, Audio I/O Jacks
• Power Connector: 1x 24pin ATX Main Power Connector, 1x 8pin ATX 12V Power Connector
• Form Factor: ATX, 12.0 x 8.9 inch / 30.5 x 22.5 cm
