Specifications

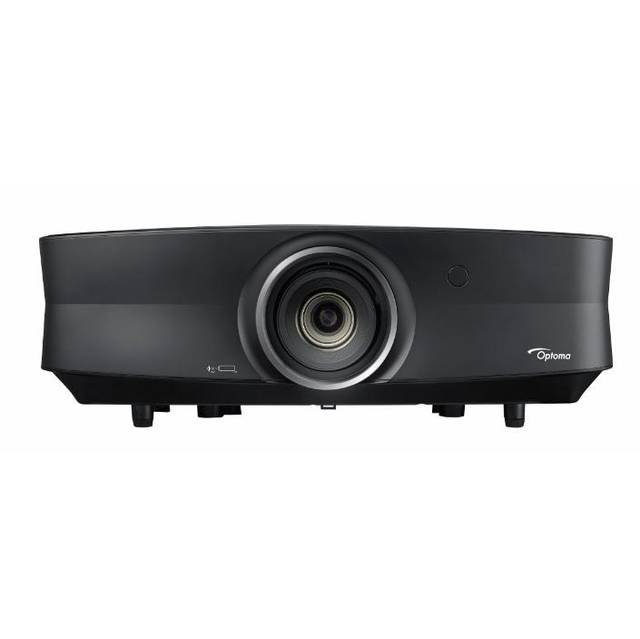

• Mfr Part Number: UHZ65
• Display Technology: Single 0.66 TRP S610 4K UHD DMD DLP Technology by Texas Instruments
• Resolution: UHD (3840x2160)
• Brightness: 3000 Lumens
• Contrast Ratio: 2,000,000:1 with Dynamic Black
• Throw Ratio: 1.39 - 2.22 (with tolerance +/- 5%)
• Zoom Type: 1.6x Optical; 0.8 - 2.0 Digital
• Lens Shift: 15% offset (with tolerance +/- 5%) Vertical
• I/O Connectors: 1xHDMI 1.4a, 1xHDMI 2.0 (w/ HDCP 2.2, MHL 2.1 and Full 18Gbps), VGA-In, Audio-In (3.5mm), Audio-Out, SDPIF Out (Optical/2 Channel ONLY), USB 2.0 Port (Service), USB-A Power, RJ45, RS232C
• Speaker: 2x4W Stereo Speakers
• Aspect Ratio: 16:9 (native), 4:3, Auto, LBX (2160p and 1080p)
• Offset: 100%±15% (tolerance: ±5% - see Vertical Lens Shift
• Projection Screen Size: 26.45" - 302.2" (26.45" to 140" optimal image size)
• Projection Distance: 16" - 581" (no zoom)
• Projection Lens: F=2.5~ 3.26, f=20.91 ~ 32.62 mm manual focus
• Uniformity: 75%
• Maximum Resolution: 4K 4096x2160 @ 60Hz with XPR Technology
• Computer Compatibility: UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366x768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
• Video Compatibility: UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
• Horizontal Scan Rate: 31.000 to 135.000KHz
• Vertical Scan Rate: 24Hz to 120Hz
• Noise Level (Eco mode): 33/29dB (Bright/ECO)
• Power Supply: AC input 100-240V, 50-60Hz, auto-switching
• Power Consumption: 400W Typical (Bright mode), 460W Max (Bright mode), 240W Typical (Eco+ mode), 275W Max (Eco+ mode)
• Lamp Type: Laser Phosphor
• Security: Kensington lock port, password (OSD)
• Remote Control: Full Function Home Remote Control
• Standard Accessories: Lens cap, AC power cord, HDMI cable, remote control, batteries for remote, multilingual CD-ROM, user's manual, quick start card, and warranty card
• Optional Accessories: Ceiling Mount
• Optional Wireless: No
• Color Wheel: RGBY 4 Segment color wheel
• Projection Method: Front, rear, ceiling mount, table top
• Dimensions (WxDxH): 19.6 x 6.0 x 13.0 inch
• Weight: 20.5 lbs
