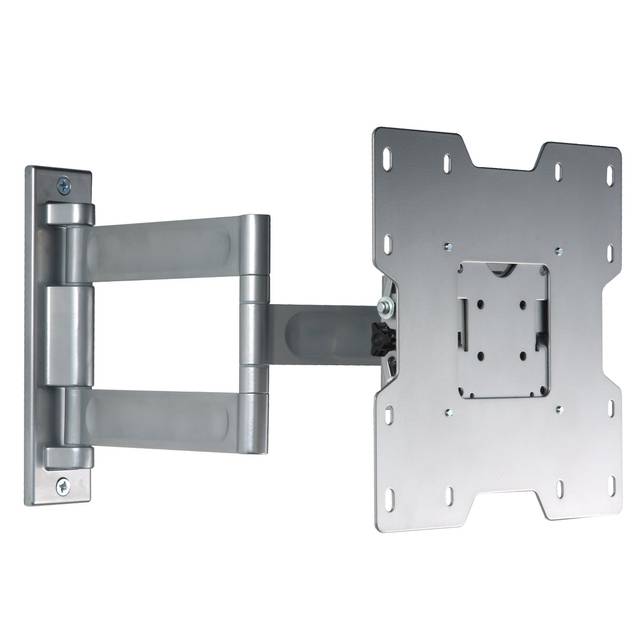

Specifications

• Mfr Part Number: PA740-S
• Features:
  • Extends 15.37" (390mm) from the wall
  • Retracts to 3.27" (83mm) to save space
  • Integrated cable management keeps cables and cords out of the way
  • +15/-5° of tilt for optimal viewing angles
  • Up to ±90° of pivot
  • VESA 75/100, 200 x 100 and 200 x 200 mm compliant
  • UL listed
• Screen Size:
  • Minimum: 22"
  • Maximum: 40"
• Load Capacity: 80.0 lbs / 36.0 kg
• VESA Pattern: 75 x 75, 100 x 100, 200 x 100, 200 x 200 mm
• Mounting Pattern: 2.95 x 2.95, 3.94 x 3.94, 7.87 x 3.94, 7.87 x 7.87 inch / 75 x 75, 100 x 100, 200 x 100, 200 x 200 mm
• Tilt: +15 / -5
• Swivel Yaw: +90 / -90
• Roll: +5 / -5
• Distance from Wall: 3.27 - 15.37 inch / 83.0 - 390.0 mm
• Security Features: Non-Security Hardware
• Finish: Scratch Resistant Fused Epoxy
• Color: Gloss Silver
• Dimensions (WxHxD): 9.42 x 9.35 x 3.27 - 15.37 inch / 239.0 x 237.0 x 83.0 - 390.0 mm
• Weight: 5.5 lbs / 2.4 kg
