Specifications

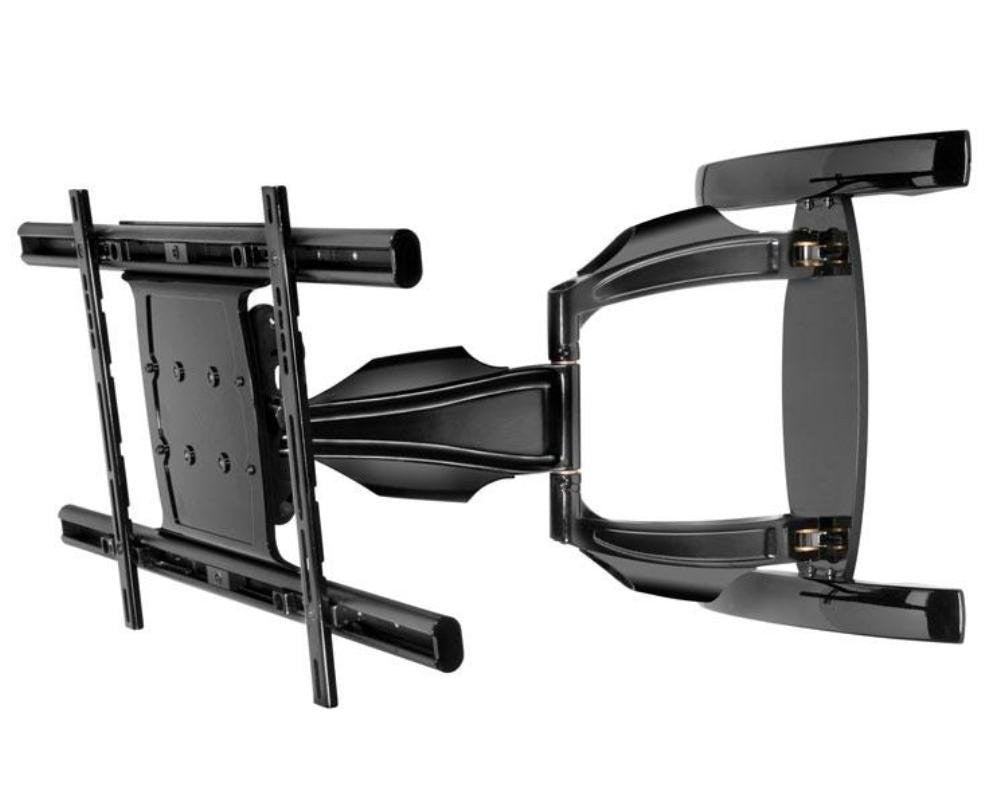

• Mfr Part Number: SA761PU
• Features:
  • Universal model SA761PU provides compatibility for 37" to 60" flat panel displays with mounting patterns up to 689 x 439mm (27.12" x 17.29")
  • Display can be held as close to the wall as 4.43" (113mm) or be extended as far as 27.55" (700mm)
  • Integrated cable management contains, protects and conceals cables for a clean clutter-free look
  • One-touch tilt allows for 15°/-5° without the use of tools for easy viewing angle adjustment
  • Multi-link construction allows for a full 180° range of motion
  • Smooth 90° swivel motion
  • ±5° of roll allows for post installation leveling
  • Display can be rotated from landscape to portrait without removing the display for easy orientation changes
  • 1" (25mm) vertical adjustment for display position fine tuning
  • Minimalistic wall plate footprint for increased wall access and improved aesthetics
  • Horizontal display adjustment up to 4.5" (114mm) for perfect display placement
• Screen Size:
  • Minimum: 37"
  • Maximum: 60"
• Load Capacity: 130.0 lbs / 59.0 kg
• VESA Pattern: 600 x 400 mm
• Mounting Pattern: 27.12 x 17.29 inch / 689 x 439 mm
• Tilt: +15 / -5
• Swivel Yaw: +90 / -90
• Roll: +5 / -5
• Distance from Wall: 4.43 - 27.55 inch / 113.0 - 700.0 mm
• Security Features: Non-Security Hardware
• Finish: Scratch Resistant Fused Epoxy
• Color: Gloss Black
• Dimensions (WxHxD): 28.68 x 20.23 x 4.43 - 27.55 inch / 728.0 x 514.0 x 113.0 - 700.0 mm
• Weight: 40.0 lbs / 18.0 kg
