Specifications

• Mfr Part Number: 997-5691-01

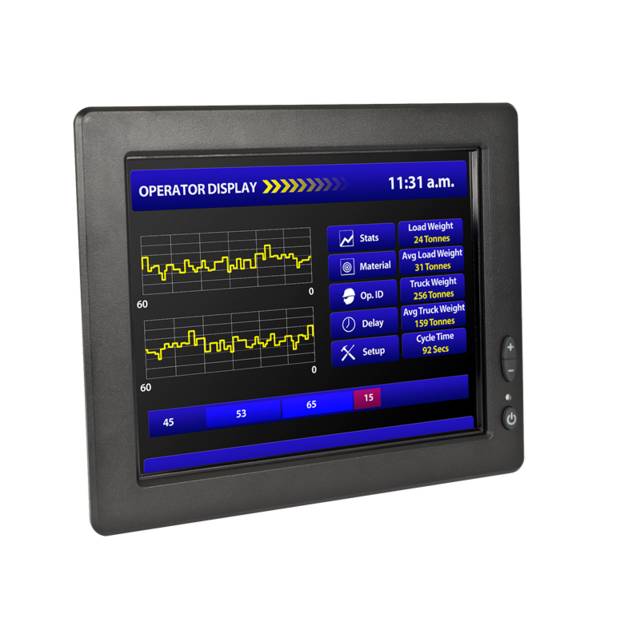

• Display Type: Open-frame and Embedded Touchscreen LCD
• Display Area: 8.4 inch
• Brightness: >700 cd/m² (Typical)
• Contrast Ratio: 600:1 (Typical)
• Viewing Angle(H/V): 160° / 140°
• Response Time: 25 ms
• Display Resolution: 800 x 600 (SVGA)
• Interface: 37-pin Sealed Port (1x VGA Port, 1x USB Port, Power through breakout cable)
• Power Consumption: <12W (typ)
• Speakers: None
• VESA Mount: 75 x 75 mm
• Color: Black
• Dimensions (WxDxH): 9.55 x 2.22 x 7.58 inch / 242.6 x 56.3 x 192.6 mm
• Weight: 5.0 lbs / 2.3 kg
