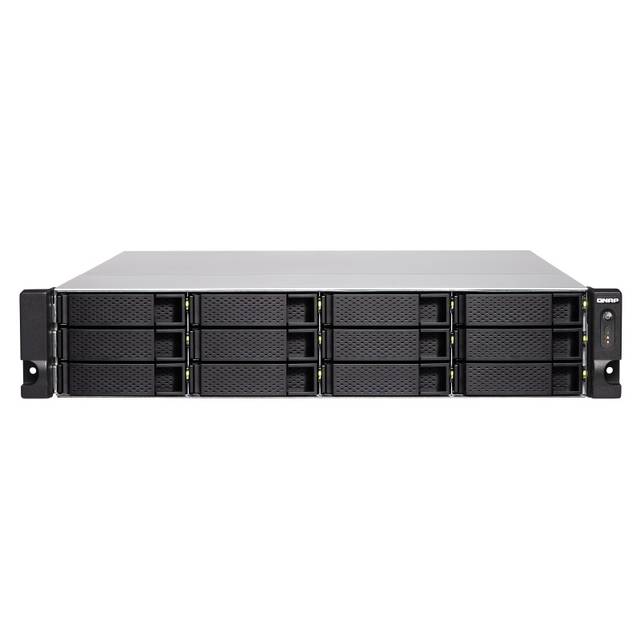

Zoom QNAP TS-1277XU-RP-2600-8G-US AMD Ryzen 5 2600 3.4GHz/ 8GB DDR4/ 4GbE/ 12SATA/ USB3.1/ 12-Bay 2U Rackmount NAS for SMB

QNAP TS-1277XU-RP-2600-8G-US AMD Ryzen 5 2600 3.4GHz/ 8GB DDR4/ 4GbE/ 12SATA/ USB3.1/ 12-Bay 2U Rackmount NAS for SMB

$4,457.33 $4,778.25

Specifications

  • Mfr Part Number: TS-1277XU-RP-2600-8G-US
  • Hardware:
    • CPU: AMD Ryzen 5 2600 processor (3.4GHz Clock Speed, 3.9GHz Max Turbo, 6 Core)
    • Floating Point Unit
    • Encryption Engine: AES-NI
    • System Memory: 8GB (2x 4GB) DDR4 UDIMM
    • Maximum Memory: 64GB (4x 16GB)
    • Memory Slot: 4x DDR4 long DIMM
    • Flash Memory: 5GB (Dual boot OS protection)
    • Drive Type: 12x 3.5 inch Bays
    • Drive Compatibility: 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
    • Hot-swappable
    • SSD Cache Acceleration Support
    • LAN Port: 2x 10 Gigabit SFP+ SmartNIC Ports, 2x RJ45 LAN Ports
    • USB: 2x USB 3.1 Gen 2 Ports (1 Type-C 5V/3A 10Gbps, 1 Type-A 5V/1A 10Gbps), 4x USB 3.0 Ports
    • PCIe Slot: 4 - Slot 1 - Gen3 x4, Slot 2 - Gen3 x8 or Gen3 x4, Slot 3 - Gen3 x4, Slot 4 - Gen3 x8 or Gen3 x4
    • LED Indicators: HDD 1-12, Status, LAN, storage expansion port status
    • Button: Power, Reset
    • System Warning: Buzzer
    • Kensington Security Slot
    • Sound Level: 37.2 db(A)
    • Operating System: QTS 4.3.4 (embedded Linux)
  • Network & Virtual Switch:
    • TCP/IP - Dual stack (IPv4 and IPv6)
    • Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
    • DHCP server and client
    • Virtual switch
      • Virtual switch editing in Virtualization Station
      • Combining virtual machines and containers in the same virtual switch
      • Network Address Translation (NAT)
      • Spanning Tree Protocol (STP)
    • WirelessAP Station
  • Security:
    • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
    • Host access control for shared folders (CIFS/SMB)
    • AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
    • 256-bit external drive encryption (AES)
    • Importing of SSL certificates from Let ™s Encrypt
    • Instant alerts through email, SMS, push service, audio, and LCD panel
    • 2-step verification
  • Storage Management:
    • Storage space utilization monitoring
    • Flexible volumes and LUNs with thin provisioning and space reclaiming
    • Supported RAID types - RAID 0, 1, 5, 6, 10, 50, JBOD, Single
    • RAID hot spare and global hot spare
    • RAID rebuild speed customization
    • Advanced secure data erase
    • Storage pools
    • Qtier Technology (automated storage tiering)
      • Automatic or scheduled data tiering
      • IO-aware auto tiering
      • Shared folder tiering on demand
    • Snapshots
      • Volume and LUN snapshots
      • Snapshot Dashboard
      • Snapshot Manager
      • Snapshot cloning
      • Snapshot Vault
      • Snapshot Replica
      • Unified Snapshot Directory
      • Support for Windows Previous Versions (CIFS/SMB)
      • Snapshot Agent for Microsoft Windows and VMware vSphere
    • Online volume expansion
    • Online storage pool expansion
    • Online RAID capacity expansion
    • Online RAID level migration
    • SMART data migration
    • Storage expansion using QNAP expansion units
    • JBOD enclosure roaming
    • SSD read-only or read-write cache
    • Bad block scan and hard drive S.M.A.R.T test
    • Bad block recovery and RAID recovery
    • Bitmap support
  • File System:
    • Internal HDD: EXT4
    • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
  • Form Factor: 2U Rackmount
  • Fan: System - 2x 7cm Fans (12V DC)
  • Power Consumption: Operating Mode - 106.66 W (Typical)
  • Power Supply: 2x 300W, 100 - 240V
  • Dimensions (WxDxH): 18.98 x 22.13 x 3.48 inch
  • Weight: 30.27 lbs

Vendor: QNAP
