Specifications

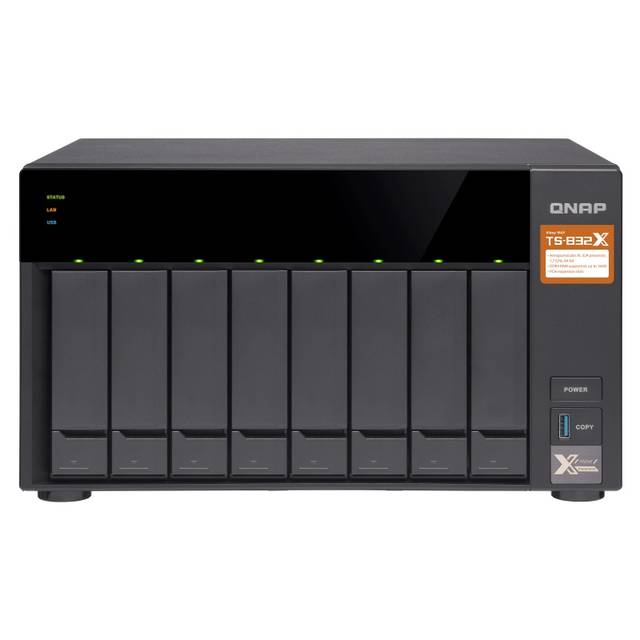

• Mfr Part Number: TS-832X-2G-US
• Hardware:
  • CPU: Alpine AL-324 ARM Cortex-A57 Processor (1.7GHz Clock Speed, Quad Core)
  • Encryption Acceleration
  • System Memory: 2GB DDR4-2400 (1x 2GB)
  • Maximum Memory: 16GB (1x 16GB)
  • Memory Slot: 1x SODIMM slot
  • Flash Memory: 512 MB NAND Flash
  • Drive Bay: 8x Hot-swappable 3.5"/2.5" SATA 6Gb/s HDD or SSD
  • LAN Port: 2x Gigabit RJ45, 2x 10GbE SFP+
  • USB Port: 3x USB 3.0 Ports (1 Front, 2 Rear)
  • PCIe Slot: Slot 1 - Gen2 x1 (for Wi-fi AIC), Slot 2 - Gen2 x2
  • Audio: 1x Built-in speaker, 1x 3.5mm line out jack
  • LED Indicator: Status/Power, LAN, USB, HDD 1-8
  • Button: Power, Reset, USB One- touch-copy
  • System Warning: Buzzer
  • Operating System: QTS 4.3.4 (embedded Linux)
• Networking:
  • TCP/IP (IPv4 & IPv6 - Dual Stack)
  • Service binding based on network interfaces
  • Squid Proxy server
  • Proxy client
  • DHCP client, DHCP server
  • Protocols - CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support
• Security:
  • Network access protection with auto-blocking - SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
  • AES 256-bit external drive encryption
  • Importable SSL certi cates
  • Instant alert via E-mail, SMS, beep, and push service
  • 2-step veri cation
• Storage Management:
  • Storage space utilization monitoring
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Disk volume types
    • RAID 0/1/5/6/10/50/60, + hot spare, single, JBOD
    • RAID hot spare and global hot spare
    • RAID rebuild speed customization
    • Advanced secure data erase
  • Storage pools
  • Qtier Technology (automated storage tiering)
  • Snapshots
    • Volume and LUN snapshots
    • Snapshot Dashboard
    • Snapshot Manager
    • Snapshot Cloning
    • Snapshot Vault
    • Snapshot Replica
    • Unify Snapshot Directory
    • Support for Windows previous versions (CIFS/SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
    • 2GB SKU - Max. 32 snapshots per volume/block-based LUN; max. 64 per NAS
    • 8GB SKU - Max. 64 snapshots per volume/block-based LUN; max. 256 per NAS
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Bad block scan and hard drive S.M.A.R.T
  • Bad block recovery and RAID recovery
  • Bitmap support
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+
• Form Factor: Tower
• Security Slot: Kensington security slot

• Fan: System - 2x 12 cm smart fan (12V DC); CPU - 1x 6 cm fan
• Power Supply: 250W, 100-240V AC, 50/60Hz, 3.5A
• Dimensions (WxDxH): 12.96 x 11.01 x 7.41 inch / 329.3 x 279.6 x 188.2 mm
• Weight: 14.37 lbs / 6.52 kg
