Specifications

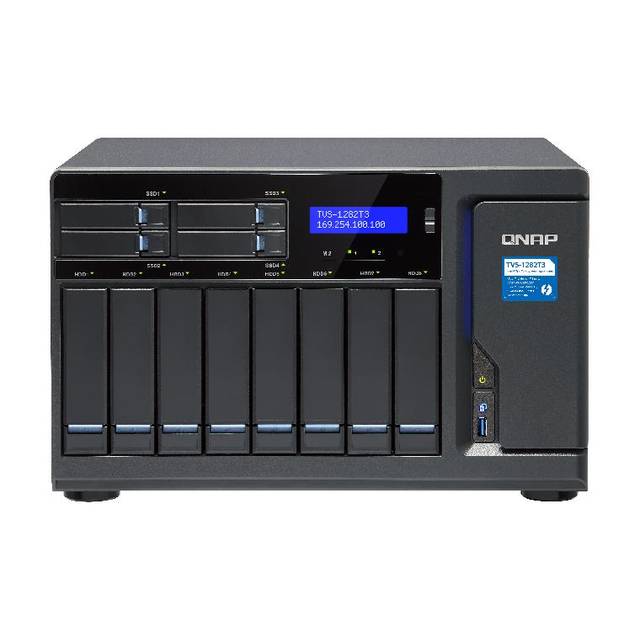

• Mfr Part Number: TVS-1282T3-I7-64G-US
• Hardware:
  • CPU: Intel Core i7-7700 Processor (3.6GHz, Quad-Core)
  • Memory: 64GB DDR4 RAM (4x 16GB)
  • Flash Memory: 512 MB DOM
  • M.2 Slot: 2x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD
  • HDD Tray: 4x 2.5" SSD; 8x 2.5"/3.5" hard drive or SSD
  • Drive Interface: SATA 6Gbps/3Gbps; Hot-swappable
  • Thunderbolt Port: 4x Thunderbolt 3 high-speed Port
  • USB: 5x USB 3.0 Ports (4 rear, 1 front)
  • LAN Port: 2x 10GBase-T Ports, 4x GbE Ports
  • HDMI Output: 3
  • Audio Input: Audio In - 2 x 6.3mm MIC In
  • Audio Output: 2x Built-in Speaker, 1x 3.5mm Line-out Jack
  • LED Indicators: System status, 2.5" SSD, M.2 SSD, 3.5" HDD
  • Buttons: System - Power button, Reset button, USB one-touch-backup button
  • System Warning: Buzzer
  • Sound Level: Sound pressure (LpAm) (bystander position) - 21.6 dB (with 8 x Seagate ST2000VN000-1HJ164 hard drive installed)
  • PCIe Slot: 1x PCI-Express 3.0 x8 Slot, 2x PCI-Express 3.0 x4 Slots
  • Operating System: QTS 4.3 (embedded Linux)
• Networking:
  • TCP/IP (IPv4 & IPv6: Dual Stack)
  • Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  • Service Binding based on Network Interfaces
  • Squid Proxy server
  • Proxy client
  • DHCP client, DHCP server
  • Protocols: CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  • UPnP & Bonjour Discovery
  • USB Wi-Fi Adapter Support
• Security:
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
  • AES 256-bit external drive encryption
  • Importable SSL certificates. Supports certificates from Let's Encrypt.
  • Instant alerts via email, SMS, beep, push service, and LCD panel
  • 2-step verification
• Storage Management:
  • Storage Space Utilization monitoring
  • QNAP flexible Volume/LUN with thin provisioning and space reclaim
  • Disk volume types: RAID 0,1, 5, 6, 10, + hot spare, JBOD single
  • Supports storage pools
  • Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD drives are required)
  • Supports snapshots (4GB System RAM required)
    • Supports Volume/LUN snapshot
    • Snapshot manager
    • Snapshot clone
    • Snapshot vault
    • Snapshot replica
    • Snapshot agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion via QNAP UX-500P/UX-800P expansion units
  • JBOD enclosure roaming
  • SSD read-only/read-write cache
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery & RAID recovery
  • Bitmap support
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, exFAT
• Form Factor: Tower
• Fan: System - 3x 8cm cooling fan, CPU - 2x 9cm fans
• Power Supply: Input - 100-240V, 3-1.5A, 60-50Hz; Output - 250W
• Dimensions: 9.23 x 14.56 x 12.59 inch / 234.6 x 369.9 x 319.8 mm
• Weight: 25.46 lbs / 11.55 kg
