Specifications

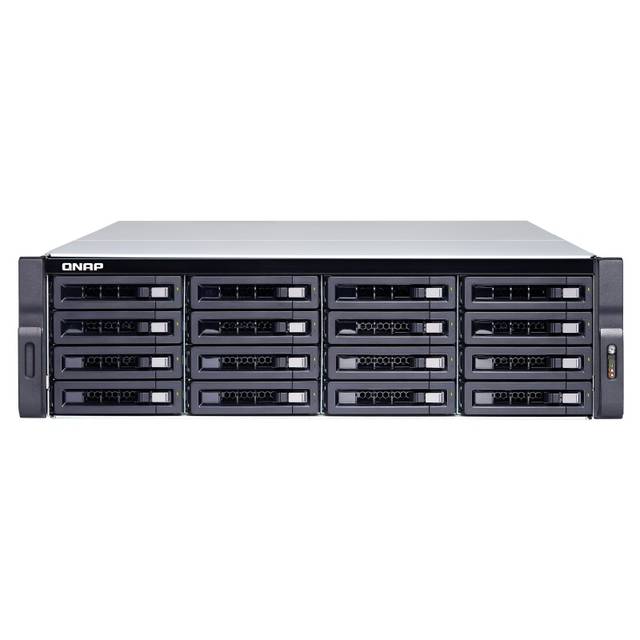

• Mfr Part Number: TVS-1672XU-RP-I3-8G-US
• Hardware:
  • CPU: Intel Core i3-8100 Processor (3.6GHz Clock Speed, Quad-core)
  • Encryption Engine: AES-NI
  • System Memory: 8GB UDIMM DDR4 (2x 4GB)
  • Maximum Memory: 64GB (4x 16GB)
  • Memory Slot: 4x Long-DIMM Slots (For dual - or quad-DIMM configurations, you must use a pair of identical DDR4 modules)
  • Flash Memory: 4GB (Dual boot OS protection)
  • Drive Bay: 16x 3.5-inch Hot-swappable SATA 6 Gbps bays
  • Drive Compatibility: 3.5-inch bays - 3.5-inch SATA hard disk drives, 2.5-inch SATA hard disk drives, 2.5-inch SATA solid state drives
  • LAN Port: 4x RJ45 LAN Ports, 2x 10GbE SFP+ SmartNIC Ports

  • PCIe Slot: Slot 1 - PCIe Gen2 x4 (PCH), Slot 2 - PCIe Gen3 x8 (CPU), Slot 3 - PCIe Gen3 x4 (CPU), Slot 4 - PCIe Gen3 x4 (CPU)

  • USB Port: 6x USB 3.1 Gen 2 Ports (10 Gbps, 4 Type-A, 2 Type-C)

  • HDMI Output: 1x HDMI 2.0, up to 3840 x 2160, @60Hz

  • LED Indicators: HDD 1-16, Status, LAN, Storage expansion port status
  • Buttons: Power, Reset
  • System Warning: Voice prompts

  • Sound Level: 49.7 dB(A)

  • Security Slot: Kensington Security Slot
  • Operating System: QTS 4.4.0 (embedded Linux)
• Network & Virtual Switch:
  • TCP/IP - Dual stack (IPv4 and IPv6)

  • Jumbo frame
  • Port trunking (Link aggregation)
    • failover
    • Load balancing

  • DHCP server and client
  • RADVD
  • USB Wi-Fi adapter
  • Virtual switch
    • Network Address Translation (NAT)
    • Spanning Tree Protocol (STP)
    • Software-Defined Switch mode
  • Static Route
  • NCSI (Network Connectivity Status Indicator)
  • DDNS settings (Customize & Multiple Service)
• Security:
  • Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)

  • Host access control for shared folders (CIFS/SMB)
  • AES 256-bit folder-based and volume-based encryptions which are validated by FIPS 140-2 CAVP (Cryptographic Algorithm Validation Program)
  • 256-bit external drive encryption (AES)
  • Importing of SSL certificates from Let's Encrypt

  • Instant alerts through email, SMS, push service, audio, and LCD panel
  • 2-step verification
• Storage Management:
  • Supported RAID types - RAID 0, 1, 5, 6, 10, 50, 60, JBOD, Single
  • RAID Hot Spare and Global Hot Spare
  • RAID Rebuild Speed Customization
  • Online RAID capacity expansion
  • Online RAID level migration
  • SSD RAID Over-provisioning
  • SSD RAID Performance evaluation (with SSD Profiling Tool)

  • Bitmap support
  • Disk auto S.M.A.R.T. data migration
  • Disk bad block scan and S.M.A.R.T test
  • Disk bad block recovery
  • Disk secure data erase
  • IronWolf Health Management
  • Storage pools
  • Qtier Data Tiering Technology
    • Automatic or scheduled data tiering
    • IO-aware auto tiering
    • Shared folder tiering on demand
  • Flexible volumes and LUNs with thin provisioning and space reclaiming
  • Online volume expansion
  • Volume type convert
  • Volume shrink
  • Storage space utilization

  • Snapshots
    • Volume and LUN snapshots
    • Snapshot Dashboard
    • Snapshot Manager
    • Snapshot local restore and revert
    • Snapshot Clone

    • Snapshot Replica and Snapshot Vault
    • Snapshot remote restore and revert

    • Unified Snapshot Directory
    • Support for Windows Previous Versions (CIFS/SMB)
    • Snapshot Agent for Microsoft Windows and VMware vSphere
  • Storage expansion using QNAP expansion units

  • JBOD enclosure roaming
  • SSD read-only or read-write cache

  • SSD write-only cache
• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT

• Form Factor: 3U Rackmount

• Fan: 4x 9.2 cm fans (12 V DC)
• Power Consumption: In operation - 126.33 W (with WD10EFRX drives fully populated)
• Power Supply: 2x 500 W, 100 - 240 V
• Dimensions (WxDxH): 481.0 x 573.5 x 130.0 mm / 18.8 x 22.6 x 5.1 inch
• Weight: 15.35 kg / 33.84 lbs
