Specifications

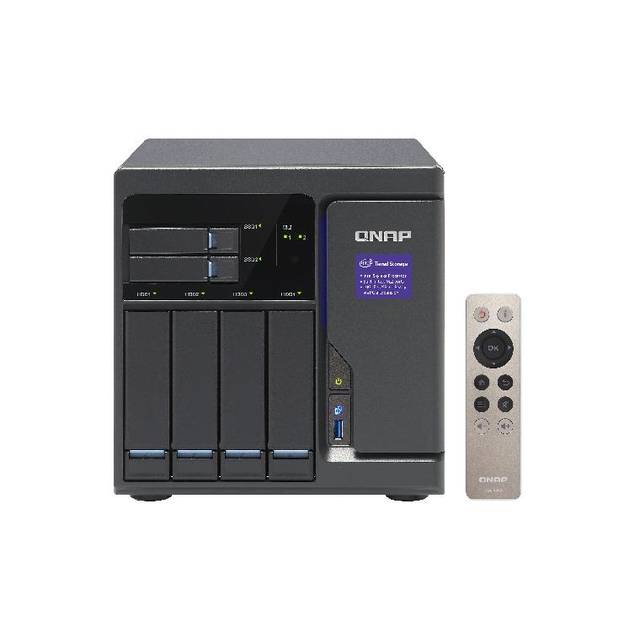

• Mfr Part Number: TVS-682-I3-8G-US
• Hardware:
  • CPU: Intel Core i3-6100 Processor (3.7GHz, Dual-Core)
  • Memory: 8GB DDR4 RAM (expandable up to 32GB)
  • Flash Memory: 512 MB DOM
  • M.2 Slot: 2x M.2 2242/2260/2280/22110 SATA 6Gb/s SSD

  • Hard Drive Tray: 2x 2.5" SSD, 4x 2.5"/3.5" hard drive or SSD

  • Drive Interface: SATA 6Gbps/3Gbps; Hot-swappable

  • USB: 5x USB 3.0 Ports (4 rear, 1 front)
  • LAN Port: 4x Gigabit Ports

  • Slot: 1x PCI-Express 3.0 x16 Slot, 1x PCI-Express 3.0 x4 Slot

  • HDMI Output: 3 (2x HDMI 1.4b, 1x HDMI 2.0)

  • Audio Input: Audio In - 2x 6.3mm MIC In

  • Audio Output: 2x built-in speaker, 1x 3.5mm Line-out jack

  • LED Indicators: System status, 2.5" SSD, M.2 SSD, 3.5" HDD
  • Buttons: Power, Reset, USB one-touch-backup

  • System Warning: Buzzer
  • Sound Level: Sound pressure (LpAm) (bystander position) - 20.5 dB (with 4 x Seagate ST2000VN000-1HJ164 hard drive installed)

  • Operating System: QTS 4.2 (Embedded Linux)
• Networking:
  • TCP/IP (IPv4 & IPv6 - Dual Stack)

  • Quad Gigabit NICs with jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
  • Service binding based on network interfaces
  • Squid Proxy server
  • Proxy client
  • DHCP client, DHCP server
  • Protocols - CIFS/SMB, AFP (v3.3), NFS(v3), FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC

  • UPnP & Bonjour Discovery

  • USB Wi-Fi Adapter Support
• Security:
  • Network access protection with auto-blocking: SSH, Telnet, HTTP(S), FTP, CIFS/SMB, AFP
  • CIFS host access control for shared folders
  • FIPS 140-2 validated AES 256-bit volume-based and shared folder data encryption
  • AES 256-bit external drive encryption
  • Importable SSL certificates
  • Instant alerts via email, SMS, beep, push service, and LCD panel
  • 2-step verification
• Storage Management:
  • Storage Space Utilization monitoring
  • QNAP flexible Volume/LUN with thin provisioning and space reclaim

  • Disk volume types - RAID 0,1, 5, 6, 10, 5 + hot spare, JBOD, single

  • Supports storage pools

  • Supports Qtier Technology (Auto Tiering, 8GB System RAM and SSD drives are required)

  • Supports snapshots (4GB System RAM required)
    • Supports Volume/LUN snapshot
    • Snapshot manager
    • Snapshot clone
    • Snapshot vault
    • Snapshot replica
    • Snapshot agent for Microsoft Windows and VMware vSphere
  • Online volume expansion
  • Online storage pool expansion
  • Online RAID capacity expansion and online RAID level migration
  • SMART data migration
  • Storage expansion via QNAP TX-500P/UX-800P expansion units3
  • JBOD enclosure roaming
  • SSD read-only/read-write cache
  • Bad block scan and hard drive S.M.A.R.T.
  • Bad block recovery & RAID recovery
  • Bitmap support

• File System:
  • Internal HDD: EXT4
  • External HDD: EXT3, EXT4, NTFS, FAT32, HFS+
• Backup Station:
  • Remote replication server (over rsync)
  • Real-time remote replication (RTRR) to another QNAP NAS, FTP or CIFS/SMB server
  • Works as both RTRR server & client with bandwidth control
  • Real-time & scheduled backup

  • Backup versioning for RTRR
  • Snapshot support for RTRR/Rsync
  • Encryption, compression, file filter, and transfer rate limitation

  • Desktop backup with QNAP NetBak Replicator for Windows

  • Apple Time Machine backup support
  • Data backup to multiple external storage devices
  • Third party backup software support: Veeam backup & replication, Acronis True Image, Arcserve backup, emc retrospect, Symantec Backup Exec, etc.
• Form Factor: Tower
• Fan: System - 1x 8 cm Cooling Fan; CPU - 1x 9 cm Fan
• Power Supply:
  • Input: 100-240V~, 3-1.5A, 60-50Hz
  • Output: 250W
• Dimensions (WxDxH): 8.9 x 12.6 x 9.1 inch / 224.9 x 319.8 x 231.9 mm
• Weight: 16.96 lbs / 7.7 kg
