Specifications

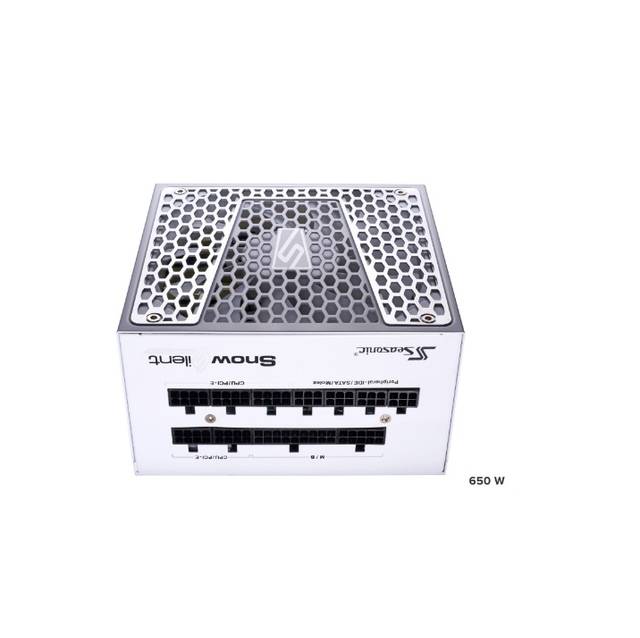

• Mfr Part Number: PRIME SNOWSILENT 650 PLATINUM
• Features:
  • 80 PLUS Platinum certified
  • Micro Tolerance Load Regulation (0.5 %)
  • Premium Hybrid Fan Control - Fanless until 40 % load
  • Fluid Dynamic Fan Bearing
  • Cable-free Connection Design
  • Gold plated connectors
• Type: Intel ATX12V
• Total Power: 650 W
• Input:
  • Voltage: 100 - 240V
  • Current: 9 - 4.5 A
  • Frequency: 50 Hz - 60 Hz
• MTBF: 150,000 hours (@ 25 °C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 54A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24pin Main Connector, 1x 4/8pin CPU Connector, 4x 6/8pin PCI-Express Connectors, 6x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 135mm Fluid Dynamic Bearing Fan w/ Premium Hybrid Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP

• Safety and EMC: cTUVus, TUV, CB, CCC, BSMI, EAC, CE
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 140.0 x 150.0 x 86.0 mm
