Specifications

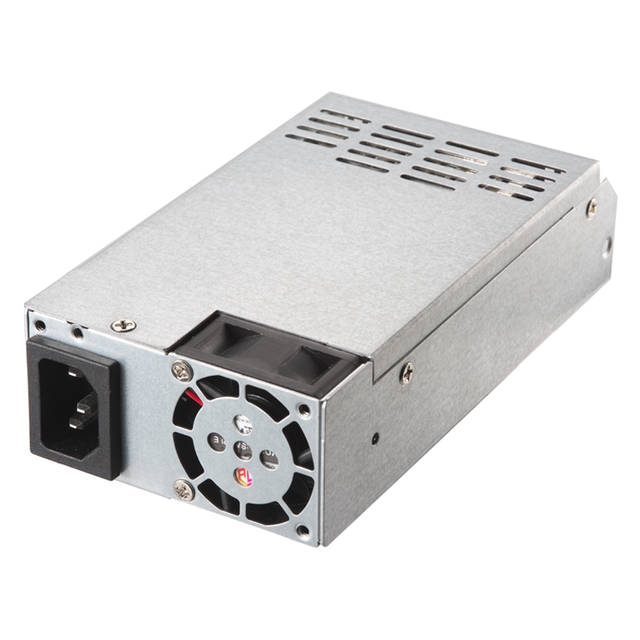

• Mfr Part Number: SSP-300SUB

• Features:
  • SATA-ready
  • Fully modular

  • High efficiency and reliability

  • Low ripple and noise
  • Super low noise fan control
  • Short circuit protection on all outputs
  • Over voltage protection
  • Over power protection
  • Fanless Mode (up to 30 % system load)
• Type: Flex ATX
• Total Power: 300 W

• Input:
  • Current: 100A max.
  • Frequency: 47 - 63 Hz
• Power Factor Correction: 95% typical
• Efficiency: >85 % (at normal input voltage)
• MTBF: >100,000 hours
• Output: +3.3V @ 14A, +5V @ 17A, +12V1 @ 18A, +12V2 @ 18A,  -12V @ 0.8A, +5VSB @ 2A
• Connector: Main Power - ATX 12V; Peripherals - SATA, HDD
• Safety: CB, C-UL, CCC, TUV
• EMI/EMC: BSMI, CE, FCC, RCM
• Dimension (WxLxH): 81.5 x 150.0 x 40.5 mm
