Specifications

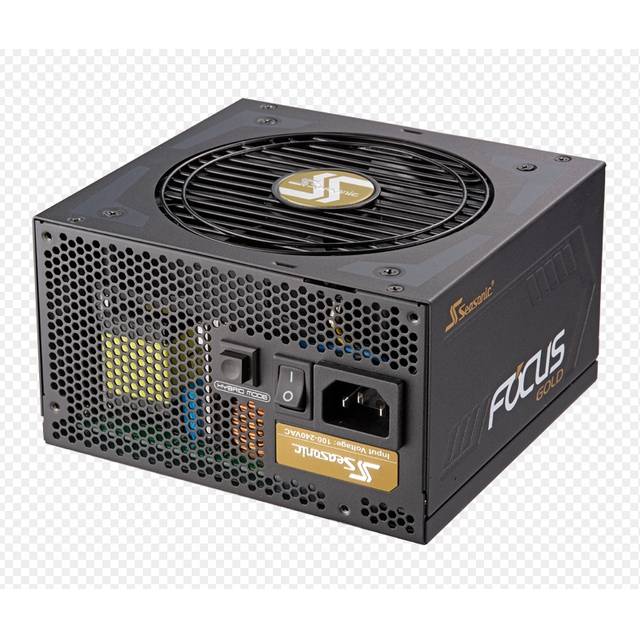

• Mfr Part Number: SSR-550FM
• Features:
  • 80 PLUS Gold
  • Compact Size
  • S2FC
  • Fluid Dynamic Fan Bearing
  • Tight Voltage Regulation
  • DC to DC Converter Design
  • 105°C Japanese Capacitor
  • Modular Cable Design
  • 7 Years Warranty
• Type: Intel ATX12V
• Total Power: 550W
• Input:
  • Voltage: 100 - 240V
  • Current: 8 - 4 A
  • Frequency: 50 - 60Hz
• MTBF: 100,000 hours (@ 25 °C, excl. fan)
• Output: +3.3V @ 20A, +5V @ 20A, +12V @ 45A, -12V @ 0.3A, +5Vsb @ 3A
• Connectors: 1x 20/24-pin Main Power Connector; 1x 4/8-pin CPU Connector, 2x 6/8-pin PCI-Express Connectors, 6x SATA Connectors, 3x Peripheral Connectors, 1x Floppy Connector
• Cooling System: 120mm Fluid Dynamic Bearing Fan w/ S2FC Fan Control
• Protection: OPP, OVP, UVP, OCP, OTP, SCP
• Safety and EMC: cULus, TUV, CB, CCC, BSMI, EAC, RCM
• Environmental Compliance: Energy Star, RoHS, WEEE, ErP Lot 6, REACH
• Dimensions (WxLxH): 150.0 x 140.0 x 86.0 mm
