Specifications

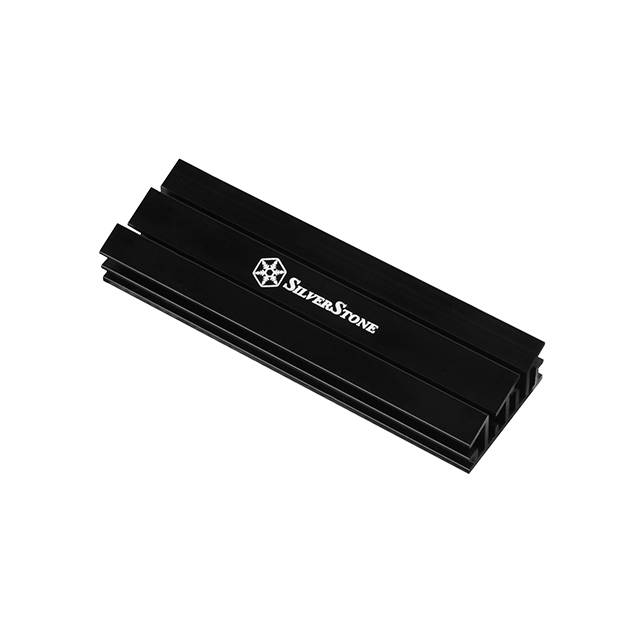

• Mfr Part Number: TP02-M2
• Features:
  • Aluminum alloy heatsink increases M.2 SSD cooling area
  • Efficient heat conduction pad for reducing temperature
  • Double layer design enhances SSD cooling for stability and efficiency
  • Supports 2280 length M.2 SSD
  • Easy to apply and affix with silicone bands without damaging M.2 SSD
• Color: Black
• Material: Aluminum, silicone
• M.2 length support: 2280 (22.0 mm x 80.0 mm)
• Thermal conductivity: 1.5W/m.k
• Operating temperature: -20 °C ~ 180 °C

• Thermal pad thickness: 1.0mm / 1.5mm

• Net Weight and dimension:
  • Heatsink (WxDxH): 70.0 x 20.0 x 10.0 mm,16.1 g

  • Blue Pad (WxDxH): 70.0 x 20.0 x 1.0 mm, 3.25 g

  • Gray Pad 1 (WxDxH): 60.0 x 20.0 x 1.0 mm, 2.8 g

  • Gray Pad 2 (WxDxH): 60.0 x 20.0 x 1.5 mm,3.7 g
