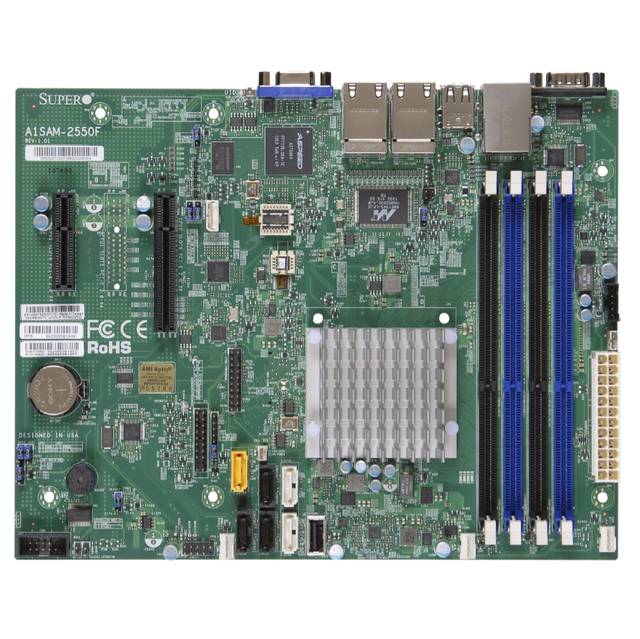

Zoom Supermicro A1SAM-2550F-B Intel Atom C2550/ DDR3/ SATA3/ V&4GbE/ MicroATX Motherboard & CPU Combo

Supermicro A1SAM-2550F-B Intel Atom C2550/ DDR3/ SATA3/ V&4GbE/ MicroATX Motherboard & CPU Combo

$305.00 Regular price $326.96

Specifications

  • Mfr Part Number: A1SAM-2550F-B
  • CPU (Included): Intel Atom C2550 Processor; Supports up to 14W TDP (Quad-Core)
  • Chipset: System-on-Chip
  • Memory: 4x 240pin DDR3-1600/1333 DIMM Slots, ECC, non-ECC, Unbuffered, Max Capacity of 64GB
  • Slots: 1x PCI-Express 2.0 x8 Slot, 1x PCI-Express 2.0 x4 Slot
  • SATA: 2x SATA3 Ports, 4x SATA2 Ports
  • Video: Aspeed AST2400 BMC Graphics
  • LAN: C2000 SoC I354 Quad Gigabit Ethernet Controllers
  • Ports: 7x USB 2.0 Ports (4 rear, 2 via header, 1 Type A), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
  • Form Factor: MicroATX, 9.6 x 7.5 inch / 24.40 x 19.05 cm
  • Intel Atom C2550 is included with this motherboard.
  • RoHS Complaint

Vendor: Supermicro
