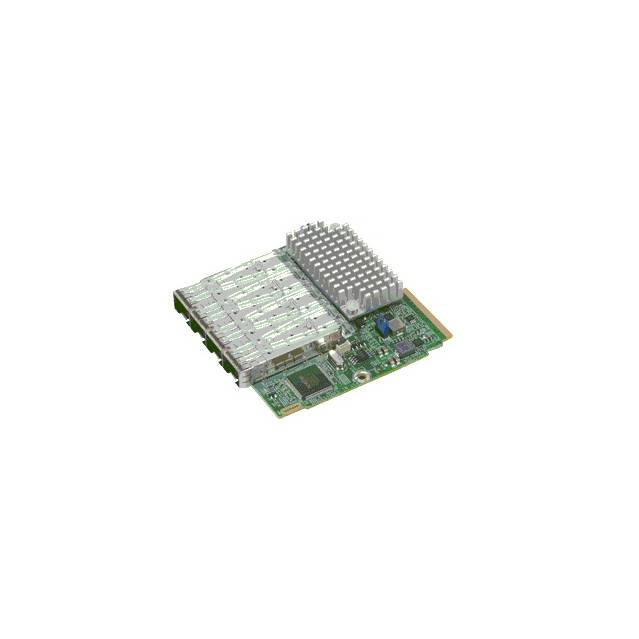

Supermicro AOC-MTG-I4SM 4-port 10 Gigabit Ethernet Adapter (for Twin Systems)

$218.88 Regular price $234.63

Specifications

  • Mfr Part Number: AOC-MTG-I4SM
  • Features:
    • Quad SFP+ Connectors
    • Super I/O Module (SIOM) Form Factor
    • Network Virtualization Offloads including VXLAN and NVGRE
    • Small Packet Performance
    • Data Plane Developer Kit for efficient packet processing
    • Low Power Consumption
    • Intel Flow Director
    • Intelligent Offloads
    • Unified networking providing a single wire support for LAN and storage
    • Asset Management Features
    • NC-SI for Remote Management
    • RoHS compliant 6/6
    • Supports Both Direct Attach Copper and Fiber Cables
  • General:
    • Intel X710 controller
    • Super I/O Module (SIOM) Form Factor
    • Quad SFP+ connectors with speed up to 10Gbps per port
    • Load balancing on multiple CPUs
    • Intel PROSet Utility for Windows Device Manager
    • Time Sync (IEEE 1588)
    • Energy Efficient Ethernet (EEE)
  • Virtualization Features:
    • Next-Generation VMDq with up to 256 VMDq VMs supported
    • PCI-SIG SR-IOV with up to 128 virtual ports
    • Virtual Machine Load Balancing (VMLB)
    • Advanced Packet Filtering
    • VLAN support for up to 4096 VLAN tags
    • VXLAN and NVGRE support
  • Storage Interface Features:
    • Preboot eXecution Environment (PXE) support
    • iSCSI remote boot
    • Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) static counters
  • Management Features:
    • Asset Management support on Supermicro platforms
    • Controller asset tags such as part number, revision, serial number, and MAC addresses
    • Controller thermal sensor
    • NC-SI for remote management
  • Advanced Software Features:
    • Teaming support
    • IEEE 802.3ad (link aggregation control protocol)
    • IEEE 802.1Q VLANs
    • IEEE 802.3 2005 flow control support
    • TCP segmentation/large send offload
    • Interrupt moderation
  • OS Support:
    • Windows Server 2012 R2, 2012, 2008 R2 X86-64
    • Linux RedHat EL 6.5 and 7.0 IA-32, X86-64, and IA-64
    • Linux SuSE SLES 11 SP3 and 12 IA-32, X86-64, and IA-64
    • FreeBSD 9 and 10 IA-32, X86-64, and IA-64
    • UEFI 2.1 and 2.3 X86-64 and I-64
    • VMware ESXi 5.1, ESXi 5.5 and ESXi 6.0 X86-64
  • Cables Support:
    • SFP+ direct attach twinaxial copper cables up to 7m
    • Fiber-optic cables (with required optional SFP+ transceivers)
  • Power Consumption:
    • Typical Power Consumption: 4W
    • Maximum Power Consumption: 7W
  • Physical Dimensions:
    • Card PCB Dimensions (WxD): 3.62 x 3.43 inch / 92.0 x 87.1 mm
  • RoHS Compliant

Vendor: Supermicro
