Specifications

• Mfr Part Number: AOC-SAS3-9305-16E

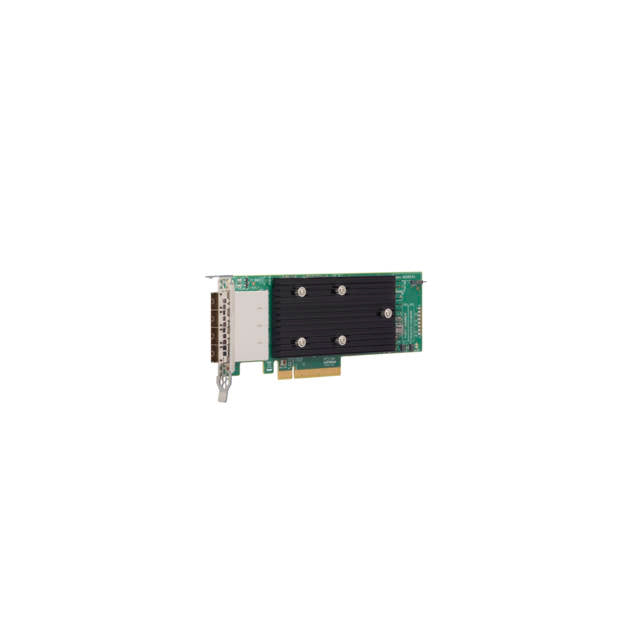

• Supermicro AOC-SAS3-9305-16E 12Gb/s SAS HBA 3.0 8-Port Host Bus Adapter
• Features: Enable high-performance, large-scale storage configurations across multiple JBOD and RBOD external storage enclosures
• Lifecycle: Active
• Host Bus Type: x8 lane PCI Express® 3.0
• External Connectors: 4 mini-SAS HD SFF8644
• Operating Voltage (V): +12V +/-8%, 3.3V +/-9%
• OS Support: Microsoft Windows, Linux (Oracle, SuSE, Red Hat), Solaris, VMware, FreeBSD, CentOS, Canonical
• PCI Power: Typical: 13.0W
• Cable Support: Passive Copper, Active Optical
• I/O Controller: SAS3216
• Operating Humidity: 20% to 80% Non-condensing
• Brackets: Full height and low profile
• Regulatory Certifications: Australia/New Zealand (AS/NZS 3548), Canada (ICES-003), EMC: Class B-US (CFR 47, P15B), Europe (EN55022/EN55024), RoHS, Safety: EN60950, WEEE
• Warranty: 3 years, free technical support, advanced replacement option at broadcom.com/support/warranty/internal-raid-hba
• Data Transfer Rates: 12Gb/s SAS-3 Compliant
• Management Software: MegaRAID Storage Manager (MSM), StorCLI (Command-Line Interface), LSI Storage Authority (LSA), HII UEFI Human Interface Infrastructure), CTRL-R
