Specifications

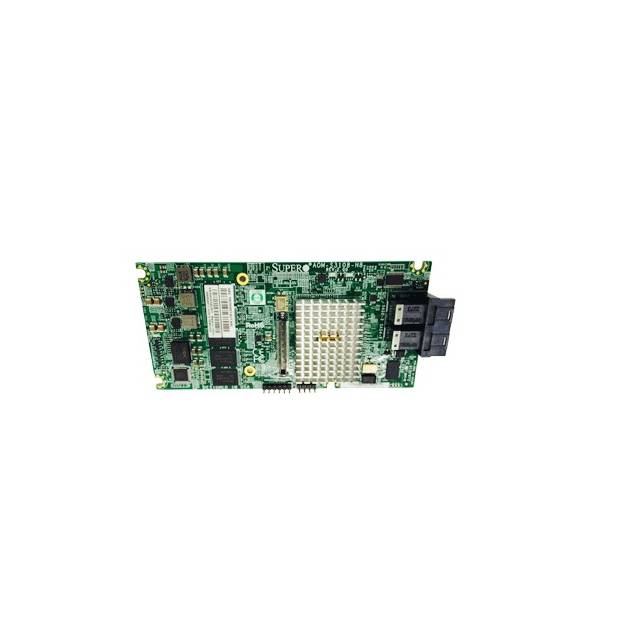

• Mfr Part Number: AOM-S3108M-H8

• Features:
  • Broadcom 3108 8-port PCI-E SAS-3 controller
  • 8-port (8 internal) 12Gb/s per port
  • Supports 16 physical Devices

  • Supports RAID 0, 1, 5, 6, 10, 50, 60

  • On board hardware IO Processor
  • 2GB 1866MHz DDR3 on-card cache

  • Advanced array configuration and management utilities
  • Automatically negotiates PCI-E link widths
  • Power management support

  • Supports 1.5, 3.0, 6.0 and 12Gb/s SAS and SATA data transfer rates
  • Port independent auto-negotiation

  • Supports SSP, SMP, STP and SATA protocols

  • Optional Supercap/TFM Unit for cached data protection

  • Supports fastpath(Free) and cachecade (AOC-CHCD-PRO2-ESW)

• Compatible Motherboards: X10DRW-i, X10DRW-iN, X10DRW-iT
• Operating System Support: Windows XP, 2K3, 2K8, Vista, RedHat Enterprise and SUSE Linux

• Dimensions (LxH): 5.2 x 2.5 inch

• Low-profile Designed

• RoHS Compliant
