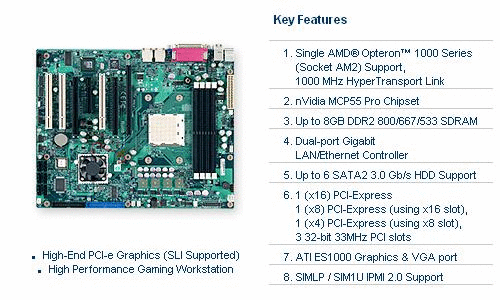

Zoom Supermicro H8SMi-2-O Opteron 1000/ nVidia MCP55 Pro/ DDR2-800/ RAID/ SLI/ ATX Server Motherboard

Supermicro H8SMi-2-O Opteron 1000/ nVidia MCP55 Pro/ DDR2-800/ RAID/ SLI/ ATX Server Motherboard

$96.56 Regular price $103.52
Specifications
  • Mfr Part Number: H8SMI-2-O
  • CPU: Socket AM2 Support AMD Dual-Core Opteron 1000 Series Processor; FSB 1000MHz HT Speed
  • Chipset: nVidia MCP55 Pro
  • Memory: 4x 240pin DDR2-800/667/533 DIMMs, Dual Channel, Un-buffered ECC/Non-ECC, Max Capacity 8GB
  • Slots: 2x PCI-Express x16 Slot (Support nVidia SLI Technology, One runs on x8); 1x PCI-Express x8 Slot (Runs on x4); 3x 32-bit 33MHz PCI Slots
  • IDE/SATA: 1x ATA-133 Channel; 6x SATA2 Ports, Support RAID 0, 1, 0+1, 5, JBOD
  • Video: ATI ES1000 Graphics Controller
  • LAN: nVidia MCP55 Pro Chipset Dual-Port Gigabit Ethernet Controller
  • Ports: 6x USB 2.0 Ports (2 rear, 4 by headers); 2x PS/2 Ports; 2x Serial Ports (1 rear, 1 by header); 1x Parallel Port; 1x VGA Port; 2x RJ45 LAN Ports
  • Power Connector: 1x 24pin Main Power; 1x 4pin CPU Power
  • Form Factor: ATX, 12 x 9.6 inch / 30.5 x 24.4 cm
  • Package: Retail
  • RoHS Compliant
  • To ensure system stability, a 300W (minimum) ATX power supply is required

Vendor: Supermicro
