Specifications

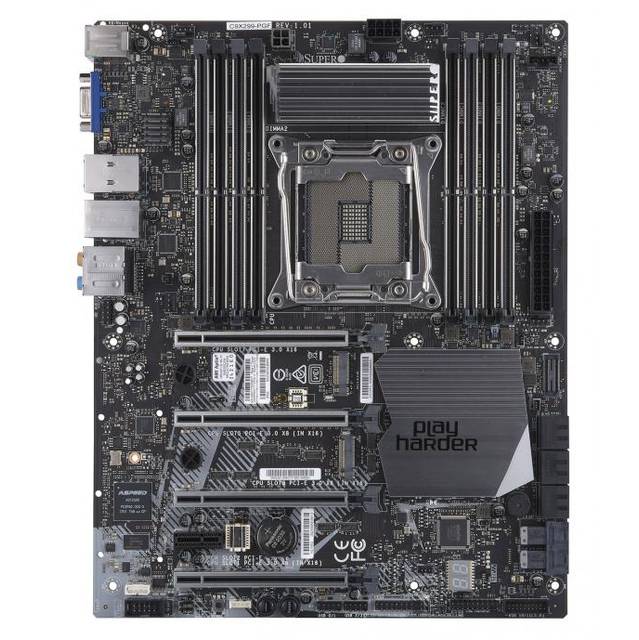

• Mfr Part Number: MBD-C9X299-PGF-B
• CPU: LGA2066
  • Supports Intel Core i9/ i7/ i5 X-Series Processor
  • Supports Intel Core i9 Extreme X-Series Processor
  • Support up to 165W TDP
• Chipset: Intel X299
• Memory: 8x 288pin DDR4-2666/ 2400/ 2133/ 1866/ 1600 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 128GB
• Slots: 4x PCI-Express 3.0 x16 Slots, 1x PCI-Express 3.0 x1 Slot
• SATA: 6x SATA3 Ports, Supports RAID 0, 1, 5, 10
• Video: Aspeed AST2500 Graphics
• Audio: Realtek ALC 1220 High Definition Audio CODEC
• LAN: Single LAN with Aquantia 5G LAN chip AQC108, Single LAN with Intel I210-AT Gigabit Ethernet Controller

• Ports: 4x USB 3.1 Ports (3 Type A, 1 Type C), 4x USB 3.0 Ports (2 rear + 2 via header), 4x USB 2.0 Ports (via headers), 1x VGA Port, 2x RJ45 LAN Ports
• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
