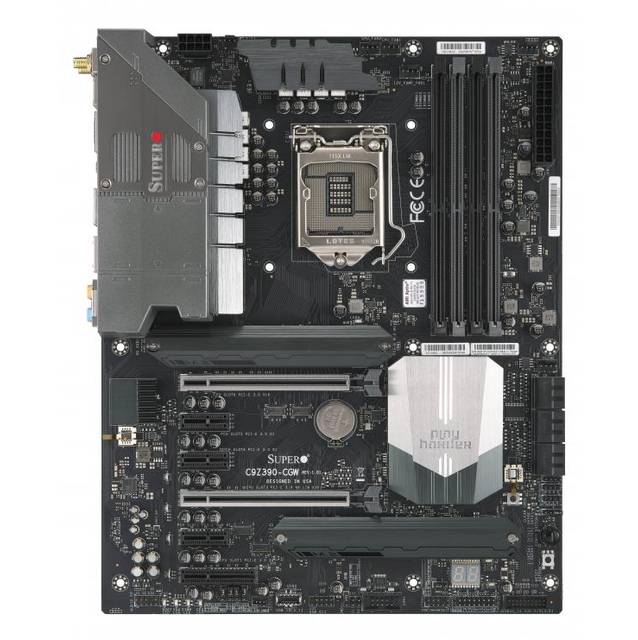

Specifications

• Mfr Part Number: MBD-C9Z390-CGW-O
• CPU: LGA1151
  • Supports Intel 8th/ 9th Generation Core i9/ i7/ i5/ i3/ Pentium/ Celeron Series Processors
  • Support up to 120W TDP
• Chipset: Intel Z390 Express
• Memory: 4x 288pin DDR4-2666/ 2400 MHz DIMM Slots, Non-ECC, Unbuffered, Max Capacity of 64GB

• Slots: 2x PCI-Express 3.0 x16 Slots (16/NA or 8/8), 1x PCI-Express 3.0 x4 Slot, 3x PCI-Express 3.0 x1 Slots

• SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10

• Audio: N/A

• LAN: Intel PHY i219V and Aquantia AQC107 10G Gigabit Ethernet Controllers

• Ports: 5x USB 3.1 Gen 2 Ports (3 Type-A rear, 1 Type-C rear, 1 via header), 4x USB 3.1 Gen 1 Ports (2 Type-A rear, 2 via header), 2x USB 2.0 Ports (Type-A header), 1x HDMI Port, 2x DisplayPorts, 1x RJ45 10GBase-T Port, 1x RJ45 LAN Port

• Form Factor: ATX, 12.0 x 9.6 inch / 30.48 x 24.38 cm
