Specifications

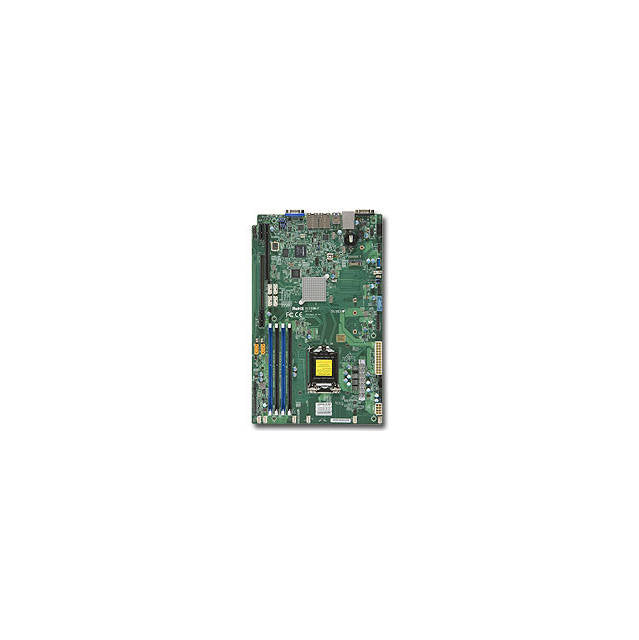

• Mfr Part Number: MBD-X11SSW-F-O
• CPU: LGA1151
  • Supports Intel Xeon E3-1200 v5 Processor
  • Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
  • Support up to 80W TDP
• Chipset: Intel C236
• Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
• Slots: 1x PCI-Express 3.0 x16 Slot (runs at x4, Right Riser slot), 1x PCI-Express 3.0 x16 Slot (Left Riser Slot)
• Storage:
  • SATA: 6x SATA3 Ports, Support RAID 0, 1, 5, 10
  • M.2: 1x M.2 Port (type 2260/ 2280/ 22110), Support SATA 3.0 & PCI-Express 3.0 x4 Mode
• Video: ASPEED AST2400 BMC Graphics
• LAN: Dual Intel I210-AT Gigabit Ethernet Controllers
• Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
• Form Factor: Proprietary, 8.0 x 13.0 inch / 20.32 x 33.02 cm
• RoHS Compliant
